Air conditioning unit parts for BMW 7 Series E23 735i (1986)

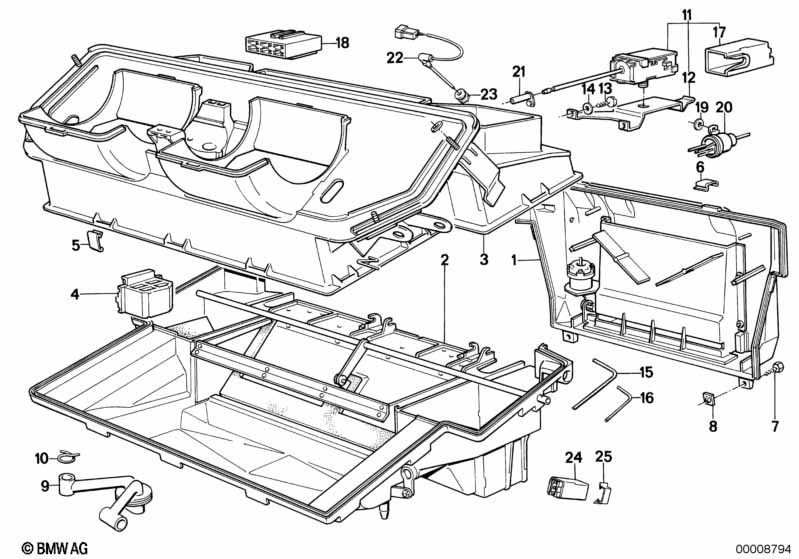

This Air conditioning unit parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Housing rear | 1 | 09/1979 | 64111367812 | $409.40 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Automatic air condition |
=Yes |
|||||||||
| 01 | Housing rear | 1 | 04/1980 | 64111368439 | $154.01 | ENDED | Shop at ECS Tuning | |||
| 02 | Housing bottom | 1 | 09/1979 | 64111367814 | $283.46 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Automatic air condition |
=Yes |
|||||||||
| 02 | Housing bottom | 1 | 04/1980 | 64111368438 | $588.69 | ENDED | Shop at ECS Tuning | |||
| 03 | Housing top | 1 | 09/1985 | 64111380383 | $1023.46 | ENDED | Shop at ECS Tuning | |||
| 04 | Resistor | 1 | 03/1978 | 64111374758 | $33.88 | Shop at ECS Tuning | ||||
| 05 | Clamp | X | 64111363101 | $2.00 | ENDED | Shop at ECS Tuning | ||||
| 06 | Clamp | 4 | 64111354630 | $0.38 | Shop at ECS Tuning | |||||
| 06 | Clamp | 4 | 64111466183 | $0.16 | Shop at ECS Tuning | |||||
| 07 | Hex head screw | ST4,8X13-C | 3 | 07119916813 | $0.13 | Shop at ECS Tuning | ||||
| 08 | Nut | ST4,8-2 | 4 | 07129926109 | ENDED | Shop at ECS Tuning | ||||
| 09 | Water drain, left | 1 | 64111363579 | $22.88 | ENDED | Shop at ECS Tuning | ||||
| 09 | Water drain, right | 1 | 64111363580 | $22.88 | ENDED | Shop at ECS Tuning | ||||
| 10 | Hose clamp | 2 | 54129434149 | $0.45 | ENDED | Shop at ECS Tuning | ||||
| 11 | Temperature switch | 1 | 64111375911 | $119.58 | Shop at ECS Tuning | |||||
| 13 | Sheet metal screw | 3,5X9,5 | 1 | 07119904455 | $2.45 | Shop at ECS Tuning | ||||
| 14 | Washer | 2 | 64111366357 | $0.67 | ENDED | Shop at ECS Tuning | ||||
| 15 | Rubber seal | D5MM | 1 | 64111367149 | $4.29 | Shop at ECS Tuning | ||||
| 16 | Rubber seal | 1500MM | 1 | 64111374109 | $7.15 | Shop at ECS Tuning | ||||
| 17 | Protection cap | 1 | 64111375922 | ENDED | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Temperature switch | X | 64111369427 | $100.72 | ENDED | Shop at ECS Tuning | ||||
| -- | Temperature switch | X | 64111375911 | $119.58 | Shop at ECS Tuning | |||||
| 17 | Protection cap | 1 | 64111375922 | ENDED | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Temperature switch | X | 64111375911 | $119.58 | Shop at ECS Tuning | |||||
| 22 | Evaporator temperature sensor | 1 | 09/1985 | 64511380606 | $38.24 | Shop at ECS Tuning | ||||
| 23 | Grommet | 1 | 09/1985 | 64111380498 | ENDED | Shop at ECS Tuning | ||||
| 24 | Control unit | KLIMA | 1 | 09/1985 | 09/1986 | 64501376710 | $224.00 | Shop at ECS Tuning | ||
| 25 | Clamp | 1 | 09/1985 | 64111380578 | $0.84 | ENDED | Shop at ECS Tuning | |||
