Actuator air conditioning for BMW 7 Series E23 728i (1986)

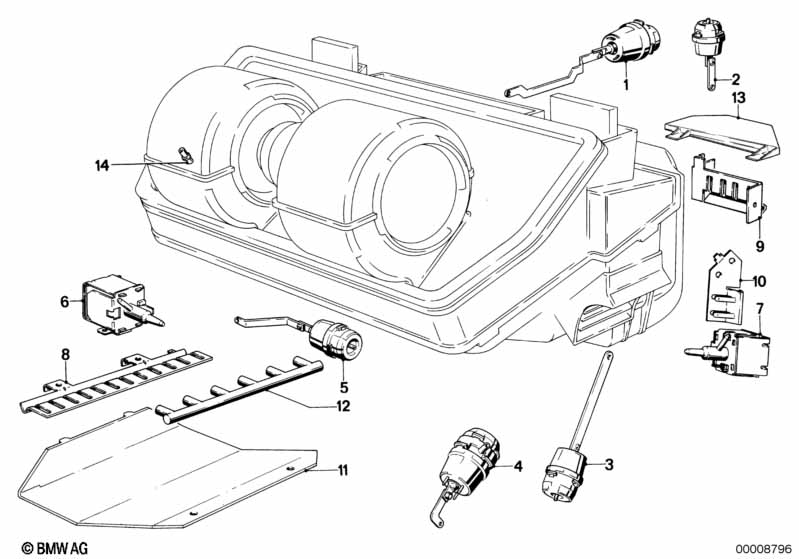

This Actuator air conditioning technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Actuator fresh air flap | 1 | 08/1979 | 64111367829 | $37.94 | ENDED | Shop at ECS Tuning | |||
| 02 | Actuator rear room flap | 1 | 08/1979 | 64111361836 | $62.83 | Shop at ECS Tuning | ||||
| 03 | Actuator defroster flaps | 1 | 08/1979 | 64111367816 | $33.80 | Shop at ECS Tuning | ||||
| 04 | Actuator air recycling flap | 1 | 08/1979 | 64111367830 | $30.41 | Shop at ECS Tuning | ||||
| 05 | Actuator foot room flaps | 1 | 08/1979 | 64111367818 | $62.83 | Shop at ECS Tuning | ||||
| 06 | Valve | 3 | 08/1979 | 64111376325 | $44.73 | Shop at ECS Tuning | ||||
| 07 | Valve | 6 | 08/1979 | 64111376326 | $40.18 | ENDED | Shop at ECS Tuning | |||
| 08 | Holder | 1 | 08/1979 | 64111367831 | ENDED | Shop at ECS Tuning | ||||
| 09 | Holder | 1 | 08/1979 | 64111367897 | ENDED | Shop at ECS Tuning | ||||
| 10 | Holder | 1 | 08/1979 | 64111367896 | $3.35 | ENDED | Shop at ECS Tuning | |||
| 11 | Cover | 1 | 08/1979 | 64111367837 | $13.27 | ENDED | Shop at ECS Tuning | |||
| 12 | Connector | 1 | 08/1979 | 64111367835 | $5.89 | ENDED | Shop at ECS Tuning | |||
| 12 | Connector | 1 | 08/1979 | 64111367836 | $10.42 | Shop at ECS Tuning | ||||
| 13 | Cover | 1 | 08/1979 | 64111369311 | ENDED | Shop at ECS Tuning | ||||
| 14 | Connector black | 1 | 08/1979 | 64111363183 | $1.00 | ENDED | Shop at ECS Tuning | |||
| 14 | Connector green | 1 | 08/1979 | 64111363938 | $1.00 | ENDED | Shop at ECS Tuning | |||
| 14 | Connector, red | 1 | 08/1979 | 64111363939 | $1.00 | ENDED | Shop at ECS Tuning | |||
| 14 | Connector light green | 1 | 08/1979 | 64111363940 | $1.00 | ENDED | Shop at ECS Tuning | |||
| 14 | Connector violett | 1 | 08/1979 | 64111363941 | $0.84 | ENDED | Shop at ECS Tuning | |||
| 14 | Connector brown | 1 | 08/1979 | 64111363942 | $0.84 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
