Air conditioning unit parts for BMW 7 Series E23 733i (1982)

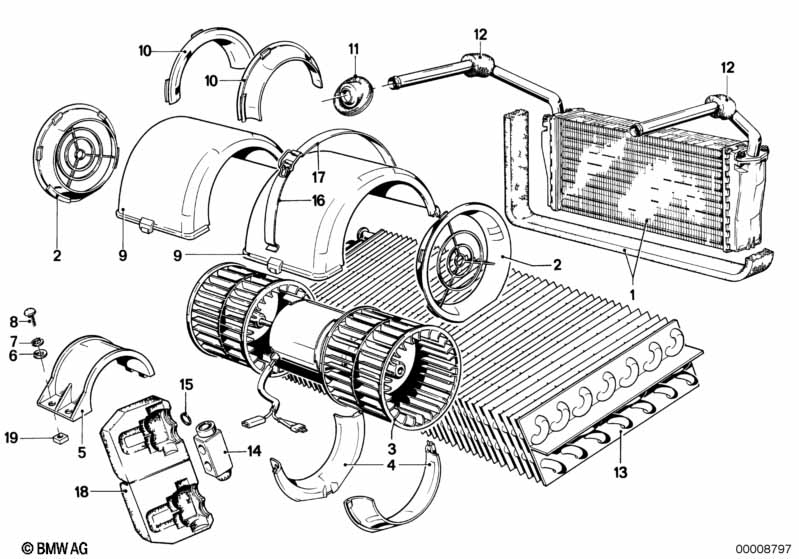

This Air conditioning unit parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heater radiator | 1 | 64111363032 | $342.33 | Shop at ECS Tuning | |||||
| 02 | Inlet frame outer | 2 | 64111361843 | $17.32 | Shop at ECS Tuning | |||||
| 03 | Blower unit | 1 | 64111361839 | $384.87 | Shop at ECS Tuning | |||||
| 04 | Frame inner | 2 | 64111361842 | $17.32 | Shop at ECS Tuning | |||||
| 05 | Bracket blower motor | 1 | 64111367839 | $11.27 | ENDED | Shop at ECS Tuning | ||||
| 06 | Washer | 10X5,3X1-200 HV | 4 | 07119904206 | Shop at ECS Tuning | |||||
| 06 | Washer | 5.3-140 HV-ZNS | 4 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 07 | Spring washer | B5 | 2 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 08 | Fillister head screw | M5X16 | 2 | 07119906415 | $0.16 | Shop at ECS Tuning | ||||
| 09 | Blower housing | 2 | 64111365200 | $15.43 | ENDED | Shop at ECS Tuning | ||||
| 10 | Frame inner | 2 | 64111361842 | $17.32 | Shop at ECS Tuning | |||||
| 11 | Rubber grommet | 2 | 64111366484 | $5.23 | Shop at ECS Tuning | |||||
| 12 | Gasket | 2 | 64111361861 | ENDED | Shop at ECS Tuning | |||||
| 13 | Evaporator | 1 | 09/1985 | 64111365128 | $517.82 | ENDED | Shop at ECS Tuning | |||
| 14 | Expansion valve | 1 | 09/1985 | 64111363581 | $126.87 | ENDED | Shop at ECS Tuning | |||
| 15 | Gasket ring | D=11.1MM | 2 | 05/1995 | 64508390602 | $1.49 | Shop at ECS Tuning | |||
| 15 | Gasket ring | 2 | 64508374877 | $1.24 | ENDED | Shop at ECS Tuning | ||||
| 15 | Gasket ring | D=11.1MM | 2 | 64508390602 | $1.49 | Shop at ECS Tuning | ||||
| 16 | Tension strap | 2 | 64111365606 | $5.00 | ENDED | Shop at ECS Tuning | ||||
| 17 | Tension strap | 2 | 64111365607 | $1.55 | Shop at ECS Tuning | |||||
| 18 | Cover | 1 | 64111368168 | ENDED | Shop at ECS Tuning | |||||
| 19 | Square nut | M5 | 2 | 07119921431 | $0.36 | Shop at ECS Tuning |
