Attaching parts compressor for BMW 7 Series E23 735i (1982)

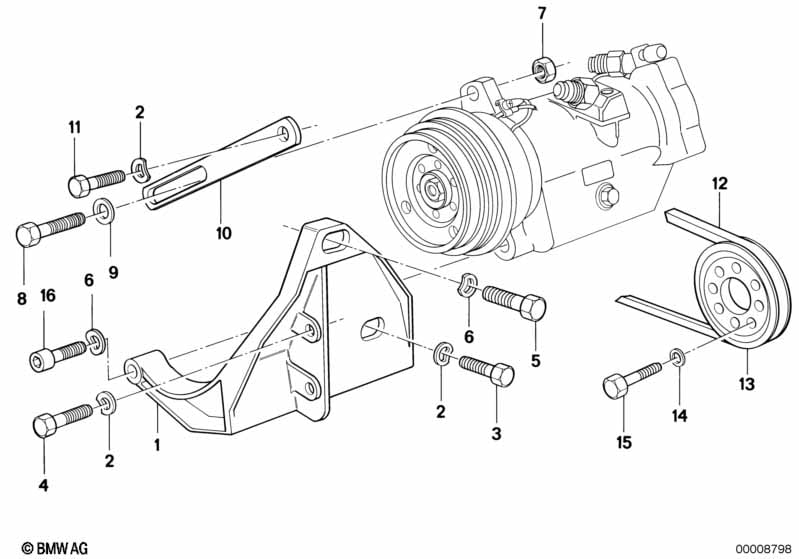

This Attaching parts compressor technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APP.TO OSCILLATING PLATE COMPRESSOR | ||||||||||
| 01 | Climate compressor supporting bracket | 1 | 64521272420 | $165.29 | ENDED | Shop at ECS Tuning | ||||
| 01 | Climate compressor supporting bracket | 1 | 64521272420 | $165.29 | ENDED | Shop at ECS Tuning | ||||
| 02 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 02 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M8X22-8.8-ZNS3 | 1 | 07119904040 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M8X22-8.8-ZNS3 | 1 | 07119904040 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M8X35 | 2 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X35 | 2 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M10X28 | 1 | 07119913836 | $0.63 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M10X28 | 1 | 07119913836 | $0.63 | Shop at ECS Tuning | ||||
| 06 | Wave washer | B10-ZNS3 | 4 | 07119904463 | Shop at ECS Tuning | |||||
| 06 | Wave washer | B10-ZNS3 | 4 | 07119904463 | Shop at ECS Tuning | |||||
| 07 | Self-locking hex nut | M10 | 1 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Self-locking hex nut | M10 | 1 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M10X45 | 1 | 07119913855 | $0.88 | ENDED | Shop at ECS Tuning | |||
| 08 | Hex bolt | M10X45 | 1 | 07119913855 | $0.88 | ENDED | Shop at ECS Tuning | |||
| 09 | Washer | 10,5X25X3,5MM | 1 | 64521350824 | $2.67 | Shop at ECS Tuning | ||||
| 09 | Washer | 10,5X25X3,5MM | 1 | 64521350824 | $2.67 | Shop at ECS Tuning | ||||
| 10 | Adjusting bar | 1 | 64521261304 | $4.37 | Shop at ECS Tuning | |||||
| 10 | Adjusting bar | 1 | 64521261304 | $4.37 | Shop at ECS Tuning | |||||
| 11 | Hexagon bolt | M8X65 | 1 | 02/2000 | 07119903018 | Shop at ECS Tuning | ||||
| 11 | Hexagon bolt | M8X65 | 1 | 02/2000 | 07119903018 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M8X65 | 1 | 41117006311 | $6.28 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M8X65 | 1 | 41117006311 | $6.28 | Shop at ECS Tuning | ||||
| 12 | Fan belt | 1 | 64521711058 | Shop at ECS Tuning | ||||||
| 12 | Fan belt | 1 | 64521711058 | Shop at ECS Tuning | ||||||
| 13 | Pulley | 124MM | 1 | 11211258274 | $60.68 | Shop at ECS Tuning | ||||
| 13 | Pulley | 124MM | 1 | 11211258274 | $60.68 | Shop at ECS Tuning | ||||
| 14 | Washer | A8,4 | 8 | 24111690120 | $0.42 | Shop at ECS Tuning | ||||
| 14 | Washer | A8,4 | 8 | 24111690120 | $0.42 | Shop at ECS Tuning | ||||
| 15 | Hex bolt | M8X16-10.9-PHR | 8 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 15 | Hex bolt | M8X16-10.9-PHR | 8 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 16 | Hex bolt | M10X45 | 2 | 07119913855 | $0.88 | ENDED | Shop at ECS Tuning | |||
| 16 | Hex bolt | M10X45 | 2 | 07119913855 | $0.88 | ENDED | Shop at ECS Tuning | |||
| 16 | Fillister-head screw | M10X45 | 2 | 07119919671 | $1.12 | ENDED | Shop at ECS Tuning | |||
| 16 | Fillister-head screw | M10X45 | 2 | 07119919671 | $1.12 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
