Air cond. system-drying container for BMW 3 Series E21 320i (1979)

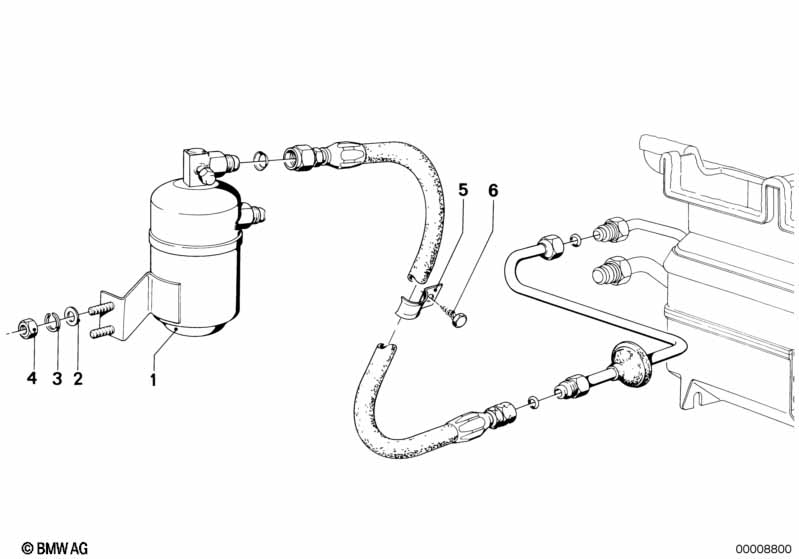

This Air cond. system-drying container technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Drying container | 1 | 64531360148 | $225.15 | ENDED | Shop at ECS Tuning | ||||
| 02 | Washer | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 03 | Spring washer | B6 | 2 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Hex nut with plate | M6 | 2 | 07147134319 | $1.05 | Shop at ECS Tuning | ||||
| 05 | Hose clamp | 2 | 64531352112 | ENDED | Shop at ECS Tuning | |||||
| 06 | Hex head screw | B5,5X13 | 2 | 07119916872 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320i Air cond. system-drying container?
- This technical diagram illustrates the Air cond. system-drying container within the Heater and Air Conditioning group for the 3 Series E21 320i produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Drying container (Part #64531360148).
- Which models use the hardware listed in this Air cond. system-drying container?
- The hardware and components featured in the Air cond. system-drying container are specific to the 3 Series E21 320i produced during 1979. These technical specifications ensure that parts like the Drying container (64531360148) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Air cond. system-drying container assembly?
- Each item in the Air cond. system-drying container corresponds to the numbered list below the illustration. For the 3 Series E21 320i, you can identify the Drying container by locating its position on the schematic, which then links to the official BMW part number 64531360148 for the Heater and Air Conditioning section.
