Automatic air condition for BMW 7 Series E23 733i (1984)

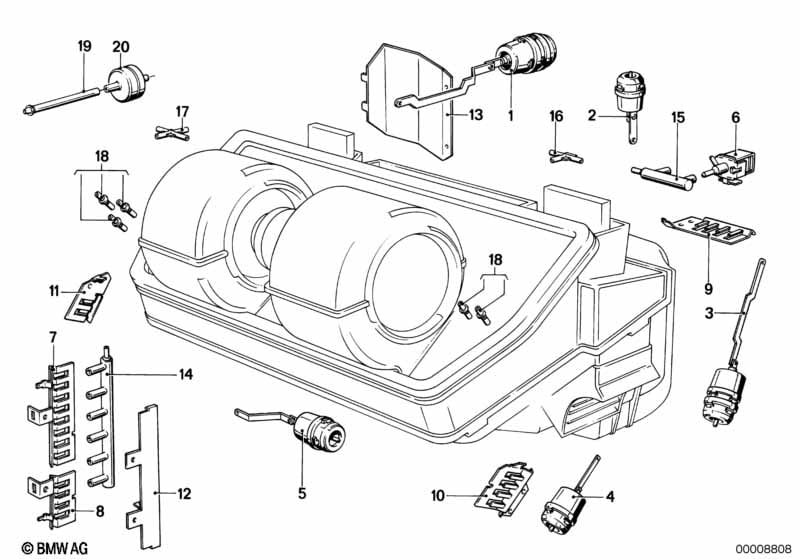

This Automatic air condition technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Actuator fresh air flap | 1 | 64111369309 | $62.83 | Shop at ECS Tuning | |||||
| 02 | Actuator rear room flap | 1 | 64111361836 | $62.83 | Shop at ECS Tuning | |||||
| 03 | Actuator defroster flaps | 1 | 64111368440 | $62.83 | ENDED | Shop at ECS Tuning | ||||
| 04 | Actuator air recycling flap | 1 | 64111367830 | $30.41 | Shop at ECS Tuning | |||||
| 05 | Actuator foot room flaps | 1 | 64111367818 | $62.83 | Shop at ECS Tuning | |||||
| 06 | Valve | X | 64111376325 | $44.73 | Shop at ECS Tuning | |||||
| 07 | Holder | 1 | 64111368442 | $10.38 | ENDED | Shop at ECS Tuning | ||||
| 08 | Holder | 1 | 64111368443 | ENDED | Shop at ECS Tuning | |||||
| 09 | Holder | 1 | 64111367832 | $4.23 | ENDED | Shop at ECS Tuning | ||||
| 10 | Holder | 1 | 64111368480 | ENDED | Shop at ECS Tuning | |||||
| 11 | Holder | 1 | 64111367896 | $3.35 | ENDED | Shop at ECS Tuning | ||||
| 12 | Mounting plate | 1 | 64111368491 | $54.13 | ENDED | Shop at ECS Tuning | ||||
| 13 | Cover | 1 | 64111367837 | $13.27 | ENDED | Shop at ECS Tuning | ||||
| 14 | Connector | 1 | 64111367835 | $5.89 | ENDED | Shop at ECS Tuning | ||||
| 15 | Connector | 1 | 64111367836 | $10.42 | Shop at ECS Tuning | |||||
| 16 | Distribution piece | 1 | 64111363061 | $1.55 | Shop at ECS Tuning | |||||
| 17 | Distribution piece | 1 | 64111368444 | $1.41 | Shop at ECS Tuning | |||||
| 18 | Connector green | X | 64111363938 | $1.00 | ENDED | Shop at ECS Tuning | ||||
| 18 | Connector, red | X | 64111363939 | $1.00 | ENDED | Shop at ECS Tuning | ||||
| 18 | Connector violett | X | 64111363941 | $0.84 | ENDED | Shop at ECS Tuning | ||||
| 18 | Connector brown | X | 64111363942 | $0.84 | ENDED | Shop at ECS Tuning | ||||
| 18 | Connector grey | X | 64111368336 | $0.84 | ENDED | Shop at ECS Tuning | ||||
| 19 | Fuel flow reducer | 1 | 64111370157 | $17.30 | ENDED | Shop at ECS Tuning | ||||
| 20 | Air reducer | 7,5SEC | 2 | 11712240726 | $26.37 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 733i Automatic air condition?
- This technical diagram illustrates the Automatic air condition within the Heater and Air Conditioning group for the 7 Series E23 733i produced during 1984. It provides a detailed exploded view of the components, identifying key parts such as the Actuator fresh air flap (Part #64111369309).
- Which models use the hardware listed in this Automatic air condition?
- The hardware and components featured in the Automatic air condition are specific to the 7 Series E23 733i produced during 1984. These technical specifications ensure that parts like the Actuator fresh air flap (64111369309) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Automatic air condition assembly?
- Each item in the Automatic air condition corresponds to the numbered list below the illustration. For the 7 Series E23 733i, you can identify the Actuator fresh air flap by locating its position on the schematic, which then links to the official BMW part number 64111369309 for the Heater and Air Conditioning section.
