Outside temperature sensor for BMW 7 Series E23 728iS (1986)

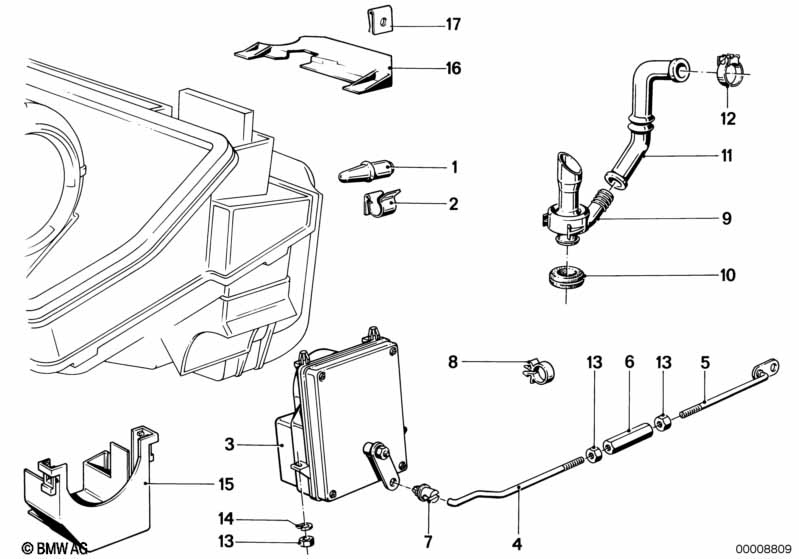

This Outside temperature sensor technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728iS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Outside temperature sensor | 1 | 04/1980 | 64111368449 | $40.02 | Shop at ECS Tuning | ||||
| 02 | Clamp | 1 | 04/1980 | 64111368450 | ENDED | Shop at ECS Tuning | ||||
| 03 | Control unit | 1 | 04/1980 | 64111368451 | $327.38 | Shop at ECS Tuning | ||||
| 04 | Connection rod | 1 | 04/1980 | 64111368452 | $4.59 | ENDED | Shop at ECS Tuning | |||
| 05 | Connection rod | 1 | 04/1980 | 64111368453 | $16.39 | ENDED | Shop at ECS Tuning | |||
| 06 | Adjusting nut | 1 | 04/1980 | 64111368454 | $9.18 | ENDED | Shop at ECS Tuning | |||
| 07 | Bush | 1 | 04/1980 | 64111368455 | $1.11 | Shop at ECS Tuning | ||||
| 08 | Clamp | 1 | 04/1980 | 64111368548 | $1.11 | ENDED | Shop at ECS Tuning | |||
| 09 | Jet | 1 | 04/1980 | 64111368456 | $106.30 | ENDED | Shop at ECS Tuning | |||
| 10 | Rubber grommet | 1 | 04/1980 | 64111368457 | ENDED | Shop at ECS Tuning | ||||
| 11 | Hose | 1 | 04/1980 | 64111368532 | ENDED | Shop at ECS Tuning | ||||
| 12 | Hose clamp | L18-24 | 1 | 04/1980 | 07129952109 | $1.07 | Shop at ECS Tuning | |||
| 13 | Hex nut | M4-A2-70 | 4 | 04/1980 | 07119922854 | Shop at ECS Tuning | ||||
| 14 | Spring washer | B4 | 2 | 04/1980 | 07119933034 | $0.11 | Shop at ECS Tuning | |||
| 15 | Cover | 1 | 04/1980 | 64111369310 | $14.73 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 728iS Outside temperature sensor?
- This technical diagram illustrates the Outside temperature sensor within the Heater and Air Conditioning group for the 7 Series E23 728iS produced during 1986. It provides a detailed exploded view of the components, identifying key parts such as the Outside temperature sensor (Part #64111368449).
- Which models use the hardware listed in this Outside temperature sensor?
- The hardware and components featured in the Outside temperature sensor are specific to the 7 Series E23 728iS produced during 1986. These technical specifications ensure that parts like the Outside temperature sensor (64111368449) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Outside temperature sensor assembly?
- Each item in the Outside temperature sensor corresponds to the numbered list below the illustration. For the 7 Series E23 728iS, you can identify the Outside temperature sensor by locating its position on the schematic, which then links to the official BMW part number 64111368449 for the Heater and Air Conditioning section.
