Vacuum control for BMW 7 Series E23 735i (1985)

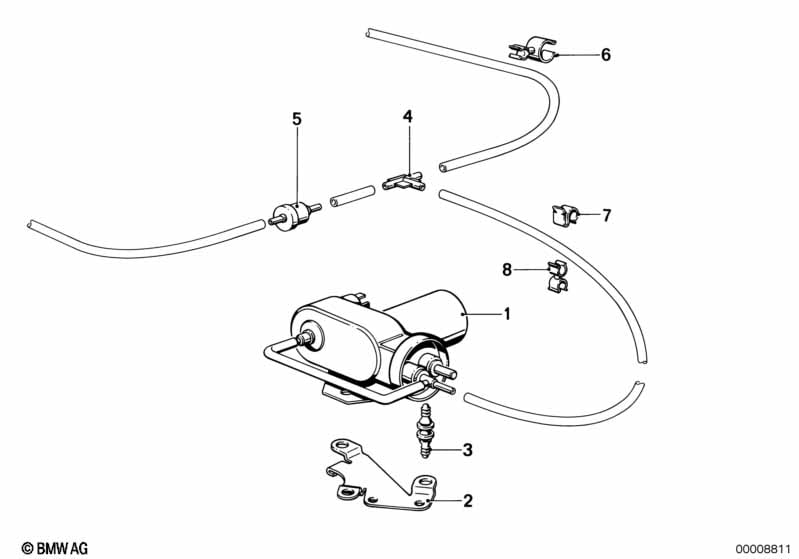

This Vacuum control technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vacuum pump | 1 | 64111369195 | $236.64 | ENDED | Shop at ECS Tuning | ||||
| 02 | Holder | 1 | 64111369196 | $4.79 | Shop at ECS Tuning | |||||
| 03 | Rubber Mounting | 3 | 64111369197 | $3.50 | Shop at ECS Tuning | |||||
| 04 | Distribution piece | 1 | 64111363061 | $1.55 | Shop at ECS Tuning | |||||
| 05 | non-return valve | 1 | 11611312737 | $17.70 | Shop at ECS Tuning | |||||
| 06 | Cable clip | 3 | 64111373927 | $1.34 | ENDED | Shop at ECS Tuning | ||||
| 07 | Fixing clamp | 1 | 07149139223 | $0.18 | Shop at ECS Tuning | |||||
| 08 | Cable clip | 2 | 64111366060 | $1.31 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
