Climate compressor supporting bracket for BMW 8 Series E31 850Ci (1994)

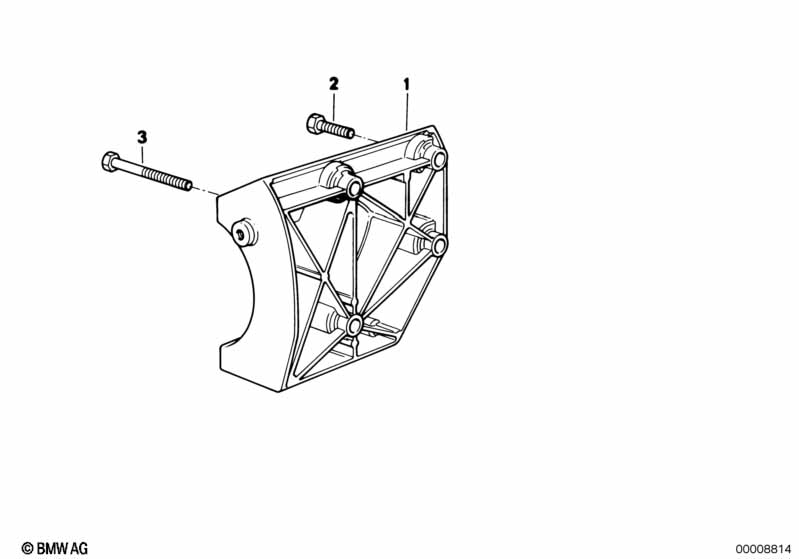

This Climate compressor supporting bracket technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Climate compressor supporting bracket | 1 | 08/1996 | 64551713654 | ENDED | Shop at ECS Tuning | ||||
| 01 | Supporting bracket | 1 | 64551710471 | $76.13 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Dowel | D=11,1MM | 2 | 11121726245 | $1.62 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO ADDITIONAL ALTERNATOR | ||||||||||
| 01 | Supporting bracket | 1 | 08/1996 | 64551731725 | ENDED | Shop at ECS Tuning | ||||
| 01 | Supporting bracket | 1 | 64551710471 | $76.13 | Shop at ECS Tuning | |||||
| 01 | Dowel | 2 | 64551729796 | $2.60 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex bolt with washer | M8X35-Z3 | 4 | 07119912492 | $0.33 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M8X90-Z3 | 4 | 07119913103 | $0.76 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
