Climate capacitor/additional blower for BMW 5 Series E12 528i (1981)

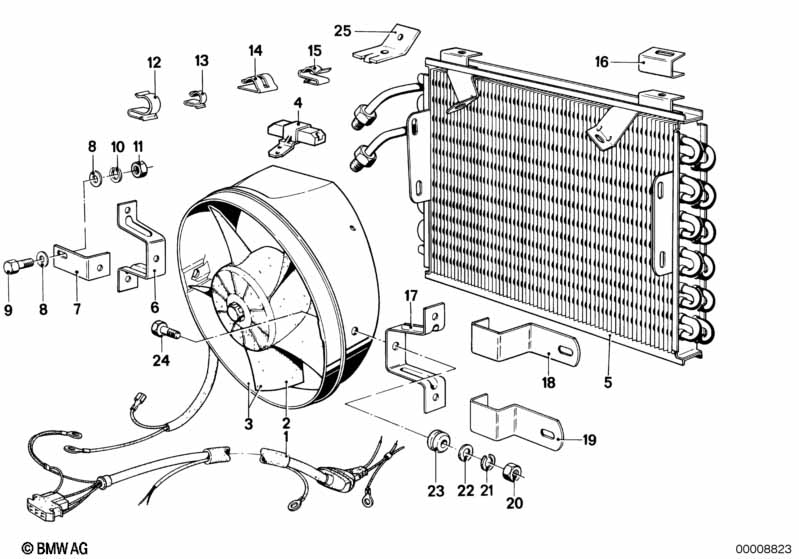

This Climate capacitor/additional blower technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring set additional fan | 1 | 61121366437 | $62.22 | ENDED | Shop at ECS Tuning | ||||
| 02 | Fan wheel | BOSCH | 1 | 17401362100 | $74.80 | Shop at ECS Tuning | ||||
| 03 | Blower unit | 1 | 17401362096 | $345.82 | ENDED | Shop at ECS Tuning | ||||
| 03 | Blower unit | 1 | 64541381339 | ENDED | Shop at ECS Tuning | |||||
| 04 | Resistor | BOSCH | 1 | 17401373177 | $32.10 | SI 120787777 | Shop at ECS Tuning | |||
| 05 | Condenser | 1 | 64531366338 | $694.71 | ENDED | Shop at ECS Tuning | ||||
| 06 | Bracket right | 1 | 64531354872 | ENDED | Shop at ECS Tuning | |||||
| 07 | Bracket right | 1 | 64531354874 | ENDED | Shop at ECS Tuning | |||||
| 08 | Washer | A6,4-200HV-ZNS3 | 4 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M6X16-8.8-ZNS3 | 2 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Spring washer | B6 | 2 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 11 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Cable clamp | D=10MM | 1 | 61131354601 | $0.42 | Shop at ECS Tuning | ||||
| 13 | Cable clamp | D=15/B=4 | 2 | 61131351044 | $0.42 | Shop at ECS Tuning | ||||
| 13 | Cable clamp | D=15/B=4 | 1 | 61131353866 | $0.50 | Shop at ECS Tuning | ||||
| 14 | Clamp | 1 | 07147202015 | Shop at ECS Tuning | ||||||
| 15 | Cable clamp | D=5MM | 1 | 61131353126 | $0.42 | Shop at ECS Tuning | ||||
| 16 | Bracket | 2 | 64531355413 | ENDED | Shop at ECS Tuning | |||||
| 17 | Bracket left | 1 | 64531354871 | ENDED | Shop at ECS Tuning | |||||
| 18 | Bracket left | 1 | 64531354875 | ENDED | Shop at ECS Tuning | |||||
| 19 | Bracket left | 1 | 64531354873 | ENDED | Shop at ECS Tuning | |||||
| 20 | Hex nut | M5-8-ZNNIV SI | 4 | 07119905729 | Shop at ECS Tuning | |||||
| 21 | Spring washer | B5 | 4 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 22 | Washer | 4 | 17401354523 | $0.63 | Shop at ECS Tuning | |||||
| 23 | Rubber grommet | 4 | 17401354524 | $0.70 | Shop at ECS Tuning | |||||
| 24 | Fit bolt | M5 | 4 | 17401354522 | $1.17 | Shop at ECS Tuning | ||||
| 25 | Bow | 1 | 64531366392 | $2.23 | ENDED | Shop at ECS Tuning |
