Heater/air conditioning unit for BMW 5 Series E28 528e (1987)

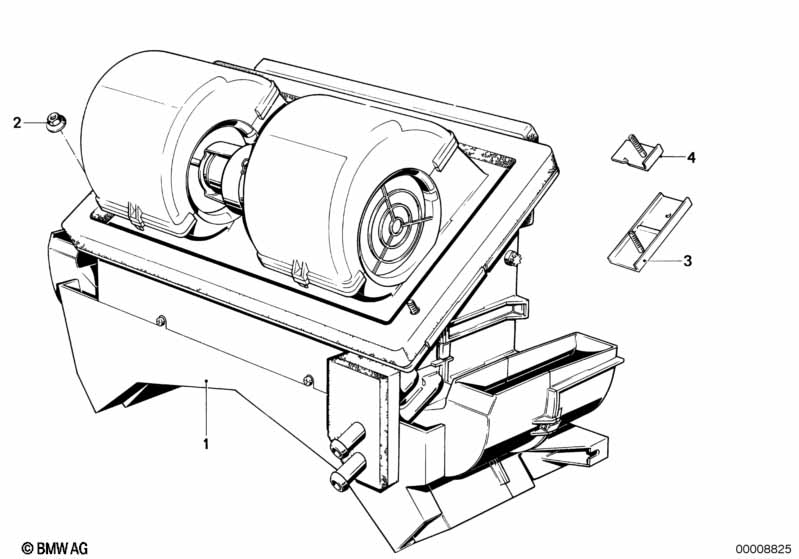

This Heater/air conditioning unit technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| DELETED HEATER/AIR CONDITION.UNITS ARE REPLACED BY SINGLE PARTS. |
||||||||||
| 01 | Heater/air conditioning unit | BEHR | 1 | 09/1986 | 64111377954 | ENDED | Shop at ECS Tuning | |||
| 02 | Hex nut with plate | M6 | 4 | 07147134319 | $1.05 | Shop at ECS Tuning | ||||
| DELETED HEATER/AIR CONDITION.UNITS ARE REPLACED BY SINGLE PARTS. |
||||||||||
| 04 | Holder | 2 | 64111371203 | ENDED | Shop at ECS Tuning | |||||
| DELETED HEATER/AIR CONDITION.UNITS ARE REPLACED BY SINGLE PARTS. |
||||||||||
