Single components heater for BMW 5 Series E28 520i (1982)

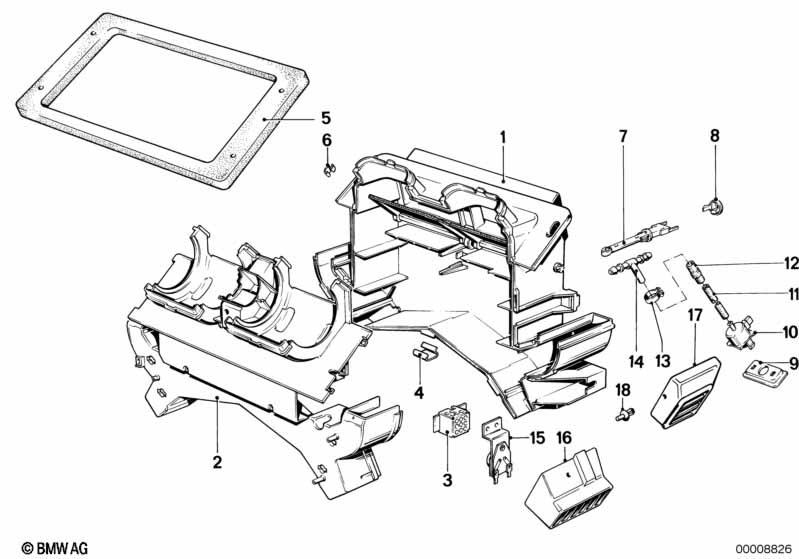

This Single components heater technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heater | SOFICA | 1 | 64111373958 | $289.09 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing half rear | BEHR | 1 | 64111373961 | $328.33 | ENDED | Shop at ECS Tuning | |||
| 02 | Housing half front | BEHR | 1 | 64111374716 | $166.98 | ENDED | Shop at ECS Tuning | |||
| 02 | Housing half front | SOFICA | 1 | 64111374718 | $174.10 | ENDED | Shop at ECS Tuning | |||
| 03 | Resistor | BEHR | 1 | 64111366990 | $43.73 | ENDED | Shop at ECS Tuning | |||
| 03 | Resistor | SOFICA | 1 | 64111380029 | $102.24 | Shop at ECS Tuning | ||||
| 04 | Clamp | 8 | 64111354630 | $0.38 | Shop at ECS Tuning | |||||
| 04 | Clamp | SOFICA | X | 64111371182 | $0.84 | ENDED | Shop at ECS Tuning | |||
| 05 | Sealing frame | SOFICA | 1 | 64111371181 | $28.55 | ENDED | Shop at ECS Tuning | |||
| 06 | Clamp | 4 | 64111355720 | $1.68 | Shop at ECS Tuning | |||||
| 07 | Temperature sensor, heater | 1 | 64111368649 | $71.98 | Shop at ECS Tuning | |||||
| 09 | Cover | 1 | 64111371299 | $6.04 | Shop at ECS Tuning | |||||
| 10 | Temperature sensor passenger room | 1 | 64111385989 | $54.07 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 10 | Temperature sensor passenger room | 1 | 64111369828 | $234.53 | ENDED | Shop at ECS Tuning | ||||
| 11 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 11 | Vacuum hose | 2X4 | X | 64111368684 | $1.77 | Shop at ECS Tuning | ||||
| 12 | Fuel flow reducer | 1 | 64111386446 | $9.73 | Shop at ECS Tuning | |||||
| 13 | Hose clamp | 8-9.5MM | 1 | 16131379229 | $0.72 | Shop at ECS Tuning | ||||
| 14 | T-Connector | 1 | 11731261489 | $0.56 | Shop at ECS Tuning | |||||
| 16 | Air channel left | 1 | 64111368721 | $5.90 | ENDED | Shop at ECS Tuning | ||||
| 16 | Air channel right | 1 | 64111368722 | $5.90 | Shop at ECS Tuning | |||||
| 18 | Expanding rivet | X | 64221356171 | $0.28 | Shop at ECS Tuning | |||||
