Connection rod/Flap for BMW 5 Series E28 528e (1987)

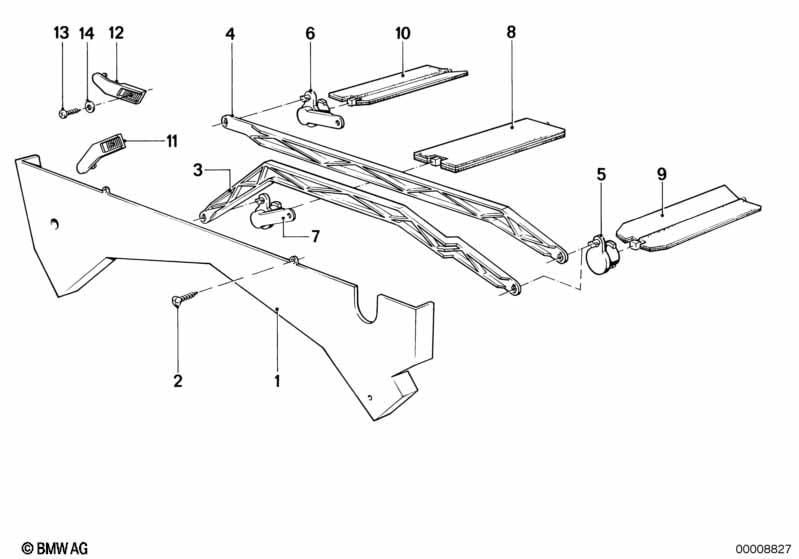

This Connection rod/Flap technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover | BEHR | 1 | 64111373967 | $22.23 | ENDED | Shop at ECS Tuning | |||
| 01 | Cover | SOFICA | 1 | 64111373968 | ENDED | Shop at ECS Tuning | ||||
| 02 | Fillister head self-tapping screw | ST2,9X6,5 | 5 | 07119907906 | $0.25 | Shop at ECS Tuning | ||||
| 02 | Self tapping screw | 3,5X10 | 5 | 64111380603 | $0.59 | ENDED | Shop at ECS Tuning | |||
| 03 | Connection rod | BEHR | 1 | 64111367741 | $7.59 | ENDED | Shop at ECS Tuning | |||
| 03 | Connection rod | SOFICA | 1 | 64111371194 | $7.81 | ENDED | Shop at ECS Tuning | |||
| 04 | Connection rod | BEHR | 1 | 64111367740 | $7.80 | ENDED | Shop at ECS Tuning | |||
| 04 | Connection rod | SOFICA | 1 | 64111371193 | $7.81 | ENDED | Shop at ECS Tuning | |||
| 05 | Lever left | BEHR | 2 | 64111367731 | $41.29 | ENDED | Shop at ECS Tuning | |||
| 05 | Lever left | SOFICA | 2 | 64111371191 | $10.38 | ENDED | Shop at ECS Tuning | |||
| 06 | Lever right | BEHR | 1 | 64111368012 | $3.50 | ENDED | Shop at ECS Tuning | |||
| 06 | Lever right | SOFICA | 1 | 64111371190 | $10.38 | ENDED | Shop at ECS Tuning | |||
| 07 | Lever right | BEHR | 1 | 64111367732 | $25.14 | ENDED | Shop at ECS Tuning | |||
| 07 | Lever right | SOFICA | 1 | 64111371189 | $6.45 | ENDED | Shop at ECS Tuning | |||
| 08 | Flap | BEHR | 2 | 64111367747 | $46.91 | Shop at ECS Tuning | ||||
| 08 | Flap | SOFICA | 2 | 64111371186 | $21.43 | ENDED | Shop at ECS Tuning | |||
| 09 | Flap left | BEHR | 1 | 64111367733 | $43.08 | Shop at ECS Tuning | ||||
| 09 | Flap | SOFICA | 1 | 64111371188 | $21.43 | ENDED | Shop at ECS Tuning | |||
| 10 | Flap right | BEHR | 1 | 64111367734 | $18.29 | ENDED | Shop at ECS Tuning | |||
| 10 | Flap | SOFICA | 1 | 64111371188 | $21.43 | ENDED | Shop at ECS Tuning | |||
| 11 | Connection rod | SOFICA | 1 | 64111371196 | $15.71 | ENDED | Shop at ECS Tuning | |||
| 12 | Connection rod | SOFICA | 1 | 64111371195 | $15.71 | ENDED | Shop at ECS Tuning | |||
| 13 | Sheet metal screw | 3,5X9,5 | 2 | 07119904455 | $2.45 | Shop at ECS Tuning | ||||
| 14 | Washer | 9X4,3X0,8-200HV | 2 | 07119904205 | $0.07 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 528e Connection rod/Flap?
- This technical diagram illustrates the Connection rod/Flap within the Heater and Air Conditioning group for the 5 Series E28 528e produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Cover (Part #64111373967).
- Which models use the hardware listed in this Connection rod/Flap?
- The hardware and components featured in the Connection rod/Flap are specific to the 5 Series E28 528e produced during 1987. These technical specifications ensure that parts like the Cover (64111373967) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Connection rod/Flap assembly?
- Each item in the Connection rod/Flap corresponds to the numbered list below the illustration. For the 5 Series E28 528e, you can identify the Cover by locating its position on the schematic, which then links to the official BMW part number 64111373967 for the Heater and Air Conditioning section.
