Heater radiator/blower for BMW 5 Series E28 M535i (1987)

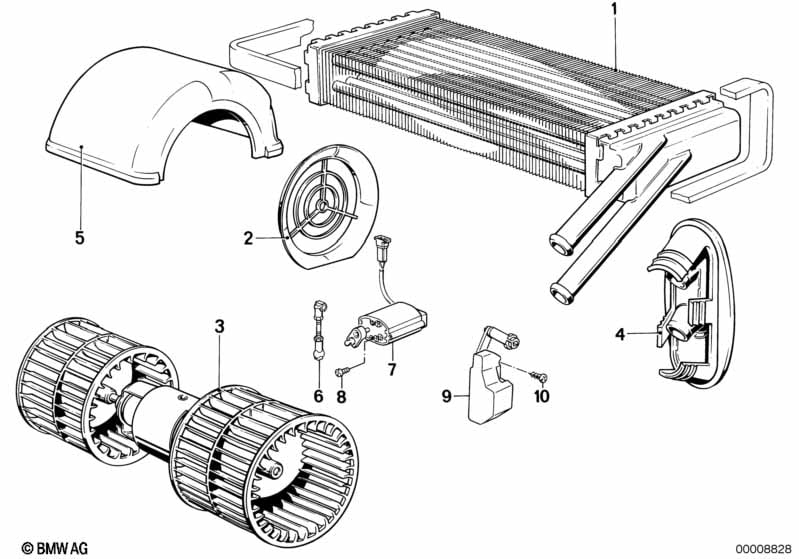

This Heater radiator/blower technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heater radiator | SOFICA | 1 | 64111366665 | $176.21 | Shop at ECS Tuning | ||||
| 01 | Heater radiator | BEHR | 1 | 64111366680 | $204.05 | ENDED | Shop at ECS Tuning | |||
| 02 | Inlet frame outer | BEHR | 2 | 64111355681 | $13.07 | ENDED | Shop at ECS Tuning | |||
| 02 | Inlet frame outer | SOFICA | 2 | 64111373964 | $9.86 | ENDED | Shop at ECS Tuning | |||
| 03 | Blower unit | BEHR | 1 | 64111354618 | $351.41 | Shop at ECS Tuning | ||||
| 03 | Blower unit | SOFICA | 1 | 64111386369 | $267.98 | Shop at ECS Tuning | ||||
| 04 | Rubber grommet | 1 | 64111375136 | $7.03 | ENDED | Shop at ECS Tuning | ||||
| 05 | Blower housing | BEHR | 2 | 64111373965 | $15.71 | ENDED | Shop at ECS Tuning | |||
| 05 | Blower housing | SOFICA | 2 | 64111373966 | $16.71 | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 06 | Lever | 1 | 10/1985 | 64111380502 | $48.13 | Shop at ECS Tuning | ||||
| 07 | Actuator | 1 | 10/1985 | 64111380501 | $337.91 | Shop at ECS Tuning | ||||
| 08 | Fillister head screw | M2,5X10 | 2 | 10/1985 | 07119906429 | $1.39 | Shop at ECS Tuning | |||
| 09 | Control unit | GEBLÄSE | 1 | 10/1985 | 64111380292 | $151.17 | ENDED | Shop at ECS Tuning | ||
| 10 | Fillister head self-tapping screw | ST2,9X6,5 | 2 | 10/1985 | 07119907906 | $0.25 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 M535i Heater radiator/blower?
- This technical diagram illustrates the Heater radiator/blower within the Heater and Air Conditioning group for the 5 Series E28 M535i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Heater radiator (Part #64111366665).
- Which models use the hardware listed in this Heater radiator/blower?
- The hardware and components featured in the Heater radiator/blower are specific to the 5 Series E28 M535i produced during 1987. These technical specifications ensure that parts like the Heater radiator (64111366665) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Heater radiator/blower assembly?
- Each item in the Heater radiator/blower corresponds to the numbered list below the illustration. For the 5 Series E28 M535i, you can identify the Heater radiator by locating its position on the schematic, which then links to the official BMW part number 64111366665 for the Heater and Air Conditioning section.
