Air conditioning unit parts for BMW 6 Series E24 635CSi (1987)

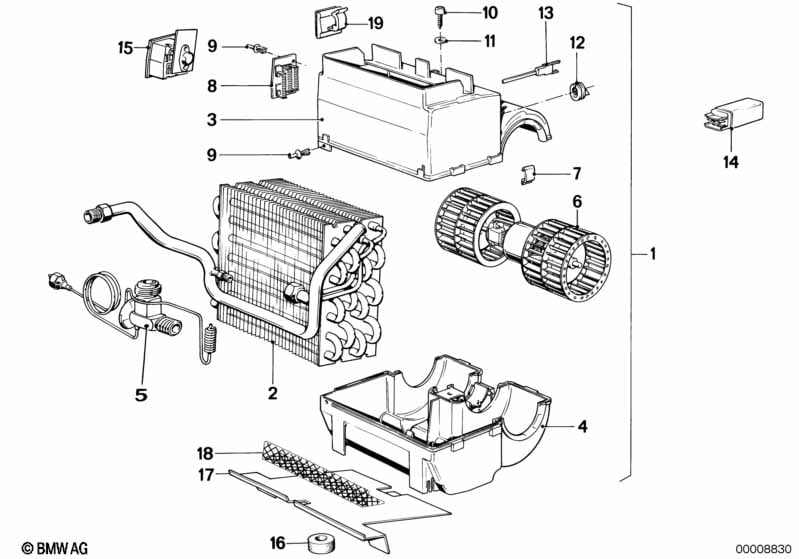

This Air conditioning unit parts technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Evaporator | 1 | 05/1982 | 64511371390 | ENDED | Shop at ECS Tuning | ||||
| 01 | Evaporator | 1 | 05/1982 | 64511371390 | ENDED | Shop at ECS Tuning | ||||
| 02 | Evaporator | 1 | 05/1982 | 64511372364 | $481.00 | ENDED | Shop at ECS Tuning | |||
| 02 | Evaporator | 1 | 05/1982 | 64511372364 | $481.00 | ENDED | Shop at ECS Tuning | |||
| 03 | Housing upper part | 1 | 05/1982 | 64511376192 | $213.24 | ENDED | Shop at ECS Tuning | |||
| 03 | Housing upper part | 1 | 05/1982 | 64511376192 | $213.24 | ENDED | Shop at ECS Tuning | |||
| 04 | Housing lower part | 1 | 05/1982 | 64511376145 | $26.75 | ENDED | Shop at ECS Tuning | |||
| 04 | Housing lower part | 1 | 05/1982 | 64511376145 | $26.75 | ENDED | Shop at ECS Tuning | |||
| 05 | Expansion valve | 1 | 05/1982 | 64511372077 | $102.89 | Shop at ECS Tuning | ||||
| 05 | Expansion valve | 1 | 05/1982 | 64511372077 | $102.89 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO ADD.AIR CONDITIO.UNIT | ||||||||||
| 05 | Expansion valve | 1 | 64501380658 | $103.67 | Shop at ECS Tuning | |||||
| 06 | Blower unit | 1 | 05/1982 | 64511374605 | $309.44 | Shop at ECS Tuning | ||||
| 06 | Blower unit | 1 | 05/1982 | 64511374605 | $309.44 | Shop at ECS Tuning | ||||
| 07 | Clamp | X | 05/1982 | 64111363101 | $2.00 | ENDED | Shop at ECS Tuning | |||
| 07 | Clamp | X | 05/1982 | 64111363101 | $2.00 | ENDED | Shop at ECS Tuning | |||
| 09 | Expanding rivet | 2 | 05/1982 | 51161881149 | $0.20 | Shop at ECS Tuning | ||||
| 09 | Expanding rivet | 2 | 05/1982 | 51161881149 | $0.20 | Shop at ECS Tuning | ||||
| 10 | Fillister head self-tapping screw | ST4,8X13 | 1 | 05/1982 | 07119907786 | $0.11 | Shop at ECS Tuning | |||
| 10 | Fillister head self-tapping screw | ST4,8X13 | 1 | 05/1982 | 07119907786 | $0.11 | Shop at ECS Tuning | |||
| 11 | Washer | 10X5,3X1-200 HV | 1 | 05/1982 | 07119904206 | Shop at ECS Tuning | ||||
| 11 | Washer | 10X5,3X1-200 HV | 1 | 05/1982 | 07119904206 | Shop at ECS Tuning | ||||
| 11 | Washer | 5.3-140 HV-ZNS | 1 | 05/1982 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 11 | Washer | 5.3-140 HV-ZNS | 1 | 05/1982 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 12 | Rubber grommet | 1 | 05/1982 | 64511368639 | $4.15 | ENDED | Shop at ECS Tuning | |||
| 12 | Rubber grommet | 1 | 05/1982 | 64511368639 | $4.15 | ENDED | Shop at ECS Tuning | |||
| 12 | Rubber grommet | 1 | 05/1982 | 64511377494 | $6.63 | Shop at ECS Tuning | ||||
| 12 | Rubber grommet | 1 | 05/1982 | 64511377494 | $6.63 | Shop at ECS Tuning | ||||
| 13 | Evaporator temperature sensor | 1 | 05/1982 | 09/1988 | 64511386920 | Shop at ECS Tuning | ||||
| 13 | Evaporator temperature sensor | 1 | 05/1982 | 09/1988 | 64511386920 | Shop at ECS Tuning | ||||
| 14 | Evaporator temperature regulator | 1 | 09/1986 | 64508390158 | $141.57 | Shop at ECS Tuning | ||||
| 14 | Evaporator temperature regulator | 1 | 09/1986 | 64508390158 | $141.57 | Shop at ECS Tuning | ||||
| 15 | Transistor | 1 | 05/1982 | 64111381785 | $71.30 | Shop at ECS Tuning | ||||
| 15 | Transistor | 1 | 05/1982 | 64111381785 | $71.30 | Shop at ECS Tuning | ||||
| 16 | Gasket ring | 1 | 06/1984 | 64511376146 | $1.02 | ENDED | Shop at ECS Tuning | |||
| 16 | Gasket ring | 1 | 06/1984 | 64511376146 | $1.02 | ENDED | Shop at ECS Tuning | |||
| 17 | Protective COVER | 1 | 06/1984 | 64511376218 | $15.40 | ENDED | Shop at ECS Tuning | |||
| 17 | Protective COVER | 1 | 06/1984 | 64511376218 | $15.40 | ENDED | Shop at ECS Tuning | |||
| 18 | Grid | 1 | 06/1984 | 64511375891 | $10.98 | Shop at ECS Tuning | ||||
| 18 | Grid | 1 | 06/1984 | 64511375891 | $10.98 | Shop at ECS Tuning | ||||
| 19 | Tubing support | 4 | 10/1985 | 61131361243 | $1.77 | Shop at ECS Tuning | ||||
| 19 | Tubing support | 4 | 10/1985 | 61131361243 | $1.77 | Shop at ECS Tuning | ||||
