Climate capacitor/additional blower for BMW 5 Series E28 520i (1987)

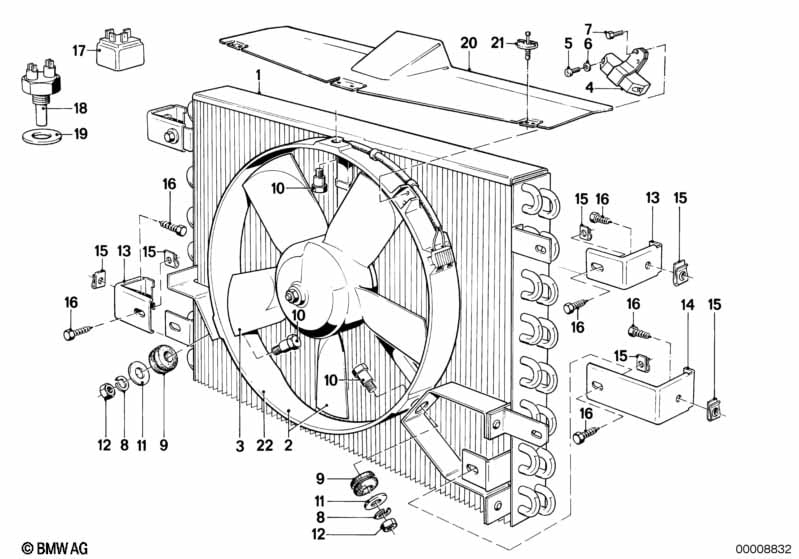

This Climate capacitor/additional blower technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Condenser | 1 | 09/1984 | 64531376470 | $440.44 | ENDED | Shop at ECS Tuning | |||
| 01 | Condenser | 1 | 09/1984 | 64531376471 | $431.41 | ENDED | Shop at ECS Tuning | |||
| 01 | Condenser | 1 | 09/1984 | 64531376474 | $359.35 | ENDED | Shop at ECS Tuning | |||
| 02 | Blower unit | 1 | 09/1984 | 64541377294 | $327.85 | ENDED | Shop at ECS Tuning | |||
| 02 | Blower unit | 1 | 09/1984 | 64541377294 | $327.85 | ENDED | Shop at ECS Tuning | |||
| 03 | Fan wheel | BOSCH | 1 | 17401362100 | $74.80 | Shop at ECS Tuning | ||||
| 03 | Fan wheel | MAGNA | 1 | 64541377298 | $53.29 | ENDED | Shop at ECS Tuning | |||
| 04 | Resistor | BOSCH | 1 | 17401373177 | $32.10 | SI 120787777 | Shop at ECS Tuning | |||
| 04 | Repair kit resistor | MAGNA | 1 | 64121388069 | $58.98 | Shop at ECS Tuning | ||||
| 05 | Fillister head screw | M4X6 | 2 | 07119907657 | $0.13 | Shop at ECS Tuning | ||||
| 06 | Washer | 9X4,3X0,8-200HV | 1 | 07119904205 | $0.07 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M5X10 | 1 | 07119913218 | $0.12 | Shop at ECS Tuning | ||||
| 08 | Spring washer | B5 | 3 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 09 | Rubber grommet | 3 | 17401362128 | $3.37 | Shop at ECS Tuning | |||||
| 10 | Fit bolt | M5 | 3 | 17401354522 | $1.17 | Shop at ECS Tuning | ||||
| 11 | Washer | 3 | 17401354523 | $0.63 | Shop at ECS Tuning | |||||
| 12 | Hex nut | M5-8-ZNNIV SI | 3 | 07119905729 | Shop at ECS Tuning | |||||
| 13 | Holder | 3 | 64531367914 | $1.22 | ENDED | Shop at ECS Tuning | ||||
| 14 | Holder | 1 | 64531367915 | $1.22 | ENDED | Shop at ECS Tuning | ||||
| 15 | Body nut | ST6,3-2-ZNS3 | X | 07129904232 | $0.16 | Shop at ECS Tuning | ||||
| 15 | Body nut | B6,3-6 | X | 16111152613 | $0.35 | Shop at ECS Tuning | ||||
| 16 | Hexagon sheet-metal bolt | ST6,3X16-R-U2-Z | X | 07119905017 | $0.38 | Shop at ECS Tuning | ||||
| 17 | Relay | GELB | 2 | 61311373585 | $23.75 | ENDED | Shop at ECS Tuning | |||
| 17 | Mini-relay | 2 | 61311373588 | $11.38 | Shop at ECS Tuning | |||||
| 18 | Temperature switch | 91CEL | 1 | 61311364272 | $29.04 | SI 120787777 | Shop at ECS Tuning | |||
| 18 | Temperature switch | 99CEL | 1 | 61311364273 | $29.04 | Shop at ECS Tuning | ||||
| 19 | Gasket ring | A14X20-VF | 2 | 07119963227 | $0.18 | Shop at ECS Tuning | ||||
| 20 | Cover | 1 | 09/1984 | 51711929356 | $28.57 | ENDED | Shop at ECS Tuning | |||
| 20 | Cover | 1 | 09/1984 | 51711929356 | $28.57 | ENDED | Shop at ECS Tuning | |||
| 22 | Fan shroud | BOSCH | 1 | 17401371261 | $154.88 | ENDED | Shop at ECS Tuning | |||
| 22 | Fan shroud | MAGNA | 1 | 64541381649 | $59.45 | ENDED | Shop at ECS Tuning | |||
| 22 | Fan shroud | BOSCH | 1 | 64541381650 | $130.21 | ENDED | Shop at ECS Tuning |
