Switch air conditioning for BMW 3 Series E21 320 (1977)

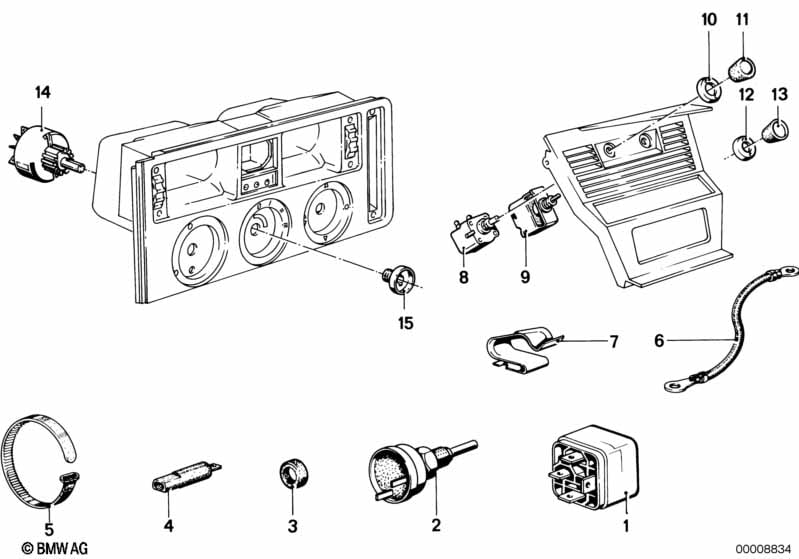

This Switch air conditioning technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Relay | GELB | 1 | 61311373585 | $23.75 | ENDED | Shop at ECS Tuning | |||
| 01 | Mini-relay | 1 | 61311373588 | $11.38 | Shop at ECS Tuning | |||||
| 02 | Temperature switch | 91CEL | 1 | 61311364272 | $29.04 | SI 120787777 | Shop at ECS Tuning | |||
| 03 | Gasket ring | A14X18-CU | 1 | 07119963201 | $0.18 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | A14X20-CUAS | 1 | 07119963244 | $0.41 | Shop at ECS Tuning | ||||
| 04 | Diode | 1 | 61311358265 | Shop at ECS Tuning | ||||||
| 05 | Cable tie | L=292MM/B=4,8MM | X | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 06 | Ground cable | 1 | 61101356103 | ENDED | Shop at ECS Tuning | |||||
| 07 | Cable clamp | D=14/B=1,5 | 1 | 54101804049 | ENDED | Shop at ECS Tuning | ||||
| 07 | Cable clamp | D=12MM | 1 | 61131354602 | $0.44 | Shop at ECS Tuning | ||||
| 08 | Switch blower | 1 | 08/1977 | 64511356020 | ENDED | Shop at ECS Tuning | ||||
| 09 | Temperature switch | 1 | 08/1977 | 64511359517 | ENDED | Shop at ECS Tuning | ||||
| 10 | Ring nut | 1 | 08/1979 | 65111351267 | ENDED | Shop at ECS Tuning | ||||
| 11 | Knob temperature | 1 | 08/1977 | 64511356022 | $48.82 | ENDED | Shop at ECS Tuning | |||
| 12 | Ring nut | 1 | 64511352089 | $2.06 | ENDED | Shop at ECS Tuning | ||||
| 13 | Knob temperature | 1 | 08/1977 | 64511356021 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
