Air conditioning system mounting parts for BMW 5 Series E28 535i (1987)

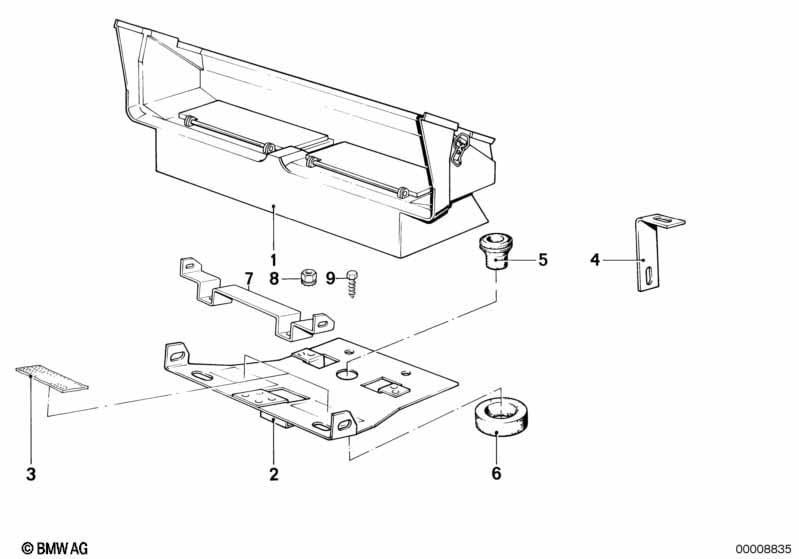

This Air conditioning system mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering piece | 1 | 64501376016 | $46.93 | ENDED | Shop at ECS Tuning | ||||
| 04 | Support | 1 | 64511362134 | $2.81 | Shop at ECS Tuning | |||||
| 07 | Holder | 1 | 08/1984 | 64511376129 | $38.22 | Shop at ECS Tuning | ||||
| 08 | Self-locking hex nut | M6 | X | 51417053138 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Hex head screw | ST4,8X13-C-U1-Z | 4 | 07119906128 | $0.18 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 535i Air conditioning system mounting parts?
- This technical diagram illustrates the Air conditioning system mounting parts within the Heater and Air Conditioning group for the 5 Series E28 535i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Covering piece (Part #64501376016).
- Which models use the hardware listed in this Air conditioning system mounting parts?
- The hardware and components featured in the Air conditioning system mounting parts are specific to the 5 Series E28 535i produced during 1987. These technical specifications ensure that parts like the Covering piece (64501376016) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Air conditioning system mounting parts assembly?
- Each item in the Air conditioning system mounting parts corresponds to the numbered list below the illustration. For the 5 Series E28 535i, you can identify the Covering piece by locating its position on the schematic, which then links to the official BMW part number 64501376016 for the Heater and Air Conditioning section.
