Air cond.compressor-supporting bracket for BMW 3 Series E30 M3 (1990)

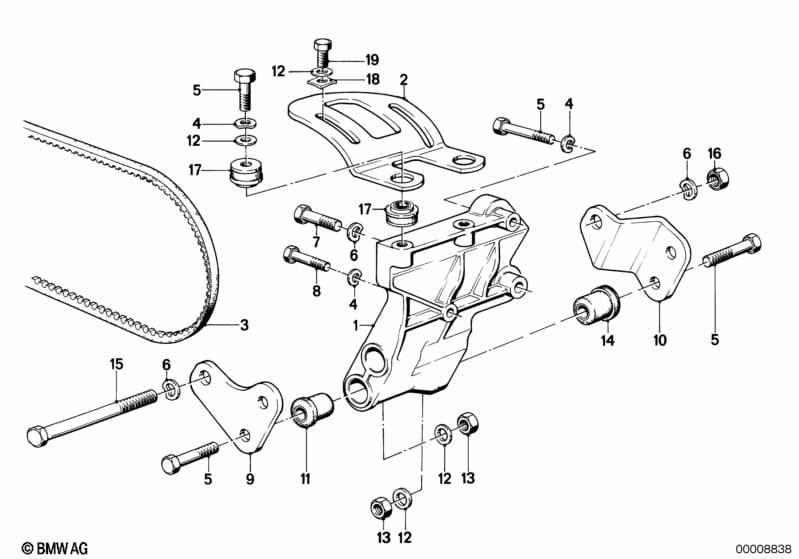

This Air cond.compressor-supporting bracket technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket | 1 | 64521268536 | $350.83 | Shop at ECS Tuning | |||||
| 02 | Adjusting bar | 1 | 64521277002 | $6.98 | Shop at ECS Tuning | |||||
| 03 | Fan belt | 12,5X810 | 1 | 64521706826 | $13.62 | ENDED | Shop at ECS Tuning | |||
| 04 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M8X40-ZNNIV SI | 5 | 07119905549 | $1.05 | Shop at ECS Tuning | ||||
| 06 | Wave washer | B10-ZNS3 | 4 | 07119904463 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M10X30-10.9ZNS3 | 1 | 07119902912 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M8X30 | 1 | 07119913664 | $0.47 | Shop at ECS Tuning | ||||
| 09 | Carrier | KLIMAKOMPRESSOR | 1 | 64521268537 | $30.78 | Shop at ECS Tuning | ||||
| 10 | Carrier | KLIMAKOMPRESSOR | 1 | 64521268538 | $5.13 | Shop at ECS Tuning | ||||
| 11 | Bush | 2 | 32411705063 | $14.36 | ENDED | Shop at ECS Tuning | ||||
| 12 | Washer | 8,4X16X1,6-ZNNV | 8 | 07119907030 | Shop at ECS Tuning | |||||
| 14 | Bush | 2 | 64521278034 | $15.58 | Shop at ECS Tuning | |||||
| 15 | Hex bolt | M10X110 | 1 | 07119912712 | $1.83 | ENDED | Shop at ECS Tuning | |||
| 16 | Self-locking hex nut | M10 | 1 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 17 | Bush | 4 | 64521278036 | $17.32 | Shop at ECS Tuning | |||||
| 18 | Washer | 2 | 64521276354 | $4.39 | ENDED | Shop at ECS Tuning | ||||
| 19 | Hex bolt | M8X20-ZNNIV SI | 2 | 07119903039 | Shop at ECS Tuning |
