Heater radiator/blower for BMW 3 Series E30 318is (1991)

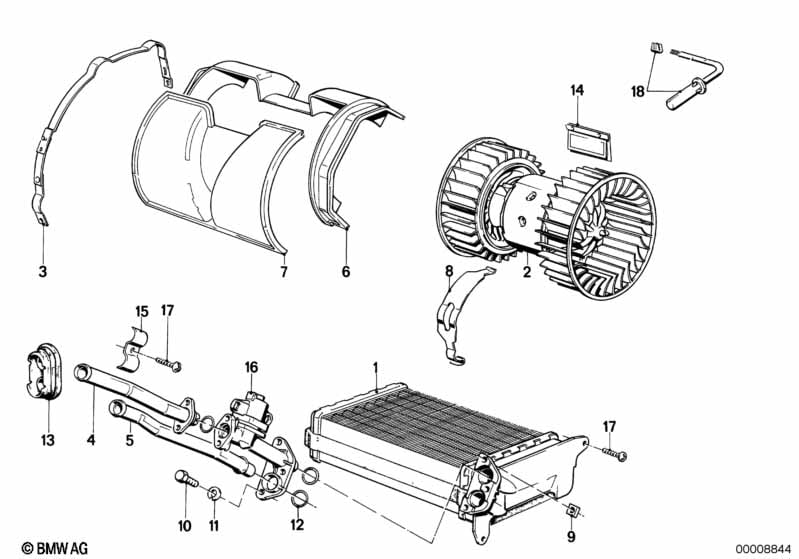

This Heater radiator/blower technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to Heater (inlet aluminium) |
|||||||||
| 01 | Heater radiator | 1 | 64118391363 | $222.08 | Shop at ECS Tuning | |||||
| 02 | Blower unit | 1 | 64111370930 | $441.26 | Shop at ECS Tuning | |||||
| 03 | Tension strap | 2 | 64111370636 | $8.10 | Shop at ECS Tuning | |||||
| 04 | Pipe | 1 | 64111370931 | $34.63 | ENDED | Shop at ECS Tuning | ||||
| 05 | Pipe | 1 | 64111370932 | $34.63 | Shop at ECS Tuning | |||||
| 06 | Blower housing | 1 | 64111372507 | $145.50 | Shop at ECS Tuning | |||||
| 07 | Blower housing | 1 | 64111370934 | $13.87 | Shop at ECS Tuning | |||||
| 08 | Shackle | 1 | 64111370935 | $5.98 | Shop at ECS Tuning | |||||
| 09 | Square nut | M5 | 5 | 07119921431 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M5X20-8.8 ZNS | 5 | 07119913116 | $1.20 | Shop at ECS Tuning | ||||
| 11 | Spring washer | B5 | 5 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 12 | Gasket ring | D=17.12MM | 3 | 64118377824 | $1.82 | Shop at ECS Tuning | ||||
| 13 | Rubber grommet | 1 | 64111370809 | $12.51 | Shop at ECS Tuning | |||||
| 14 | Non return flap | 1 | 64111372653 | $3.43 | Shop at ECS Tuning | |||||
| 15 | Holder | 1 | 07/1984 | 64111373634 | ENDED | Shop at ECS Tuning | ||||
| 16 | Water valve | 1 | 64111386707 | $227.82 | Shop at ECS Tuning | |||||
| 17 | Screw | X | 64111370949 | $0.38 | Shop at ECS Tuning | |||||
| 18 | Repair kit temperature sensor | 1 | 64111394105 | $47.14 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
