Condenser/fan for BMW 3 Series E30 318i (1991)

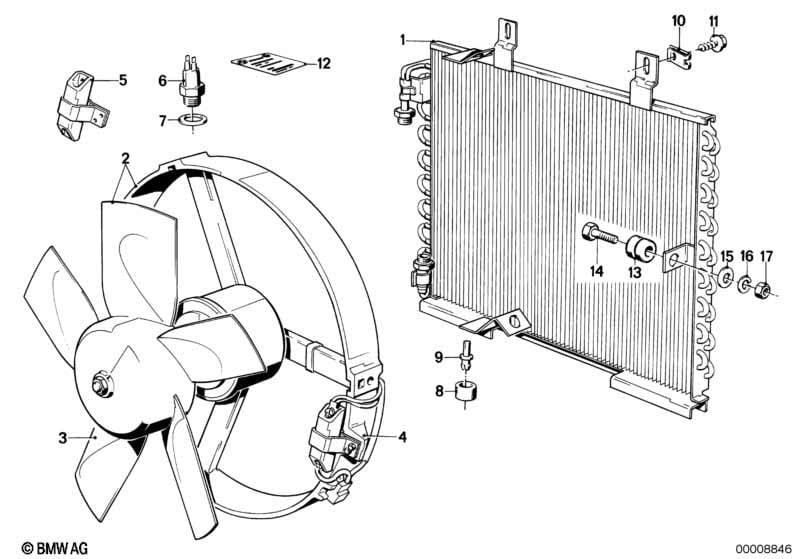

This Condenser/fan technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Condenser | R12/R134A | 1 | 64538391509 | $454.53 | ENDED | Shop at ECS Tuning | |||
| 03 | Fan wheel | BOSCH | 1 | 17401362100 | $74.80 | Shop at ECS Tuning | ||||
| 03 | Fan wheel | MAGNA | 1 | 09/1986 | 64541377298 | $53.29 | ENDED | Shop at ECS Tuning | ||
| 04 | Fan shroud | MAGNA | 1 | 09/1986 | 64541381649 | $59.45 | ENDED | Shop at ECS Tuning | ||
| 04 | Fan shroud | BOSCH | 1 | 09/1986 | 64541381650 | $130.21 | ENDED | Shop at ECS Tuning | ||
| 05 | Resistor | BOSCH | 1 | 17401373177 | $32.10 | SI 120787777 | Shop at ECS Tuning | |||
| 05 | Repair kit resistor | MAGNA | 1 | 64121388069 | $58.98 | Shop at ECS Tuning | ||||
| 06 | Temperature switch | 91CEL | 1 | 61311364272 | $29.04 | SI 120787777 | Shop at ECS Tuning | |||
| 06 | Temperature switch | 99CEL | 1 | 61311364273 | $29.04 | Shop at ECS Tuning | ||||
| 07 | Gasket ring | A14X20-VF | 2 | 07119963227 | $0.18 | Shop at ECS Tuning | ||||
| 08 | Rubber Mounting | 2 | 17111150984 | $2.74 | Shop at ECS Tuning | |||||
| 09 | Expanding rivet | 2 | 17111150983 | $0.65 | ENDED | Shop at ECS Tuning | ||||
| 10 | Body nut | B6,3-6 | 2 | 16111152613 | $0.35 | Shop at ECS Tuning | ||||
| 11 | Hex head screw | ST6,3X19-C-Z1 | 2 | 07119916970 | $0.30 | Shop at ECS Tuning | ||||
| 12 | Label "air condition" | 875G | 1 | 64501381958 | $2.20 | ENDED | Shop at ECS Tuning | |||
| 12 | Label "air condition" | 975G | 1 | 01/1987 | 64501380981 | $2.20 | ENDED | Shop at ECS Tuning | ||
| 13 | Rubber grommet | 3 | 17401362128 | $3.37 | Shop at ECS Tuning | |||||
| 14 | Fit bolt | M5 | 3 | 17401354522 | $1.17 | Shop at ECS Tuning | ||||
| 15 | Washer | 3 | 17401354523 | $0.63 | Shop at ECS Tuning | |||||
| 16 | Spring washer | B5 | 3 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 17 | Hex nut | M5-8-ZNNIV SI | 3 | 07119905729 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 318i Condenser/fan?
- This technical diagram illustrates the Condenser/fan within the Heater and Air Conditioning group for the 3 Series E30 318i produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Condenser (Part #64538391509).
- Which models use the hardware listed in this Condenser/fan?
- The hardware and components featured in the Condenser/fan are specific to the 3 Series E30 318i produced during 1991. These technical specifications ensure that parts like the Condenser (64538391509) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Condenser/fan assembly?
- Each item in the Condenser/fan corresponds to the numbered list below the illustration. For the 3 Series E30 318i, you can identify the Condenser by locating its position on the schematic, which then links to the official BMW part number 64538391509 for the Heater and Air Conditioning section.
