Evaporator / Expansion valve for BMW 3 Series E30 318i (1985)

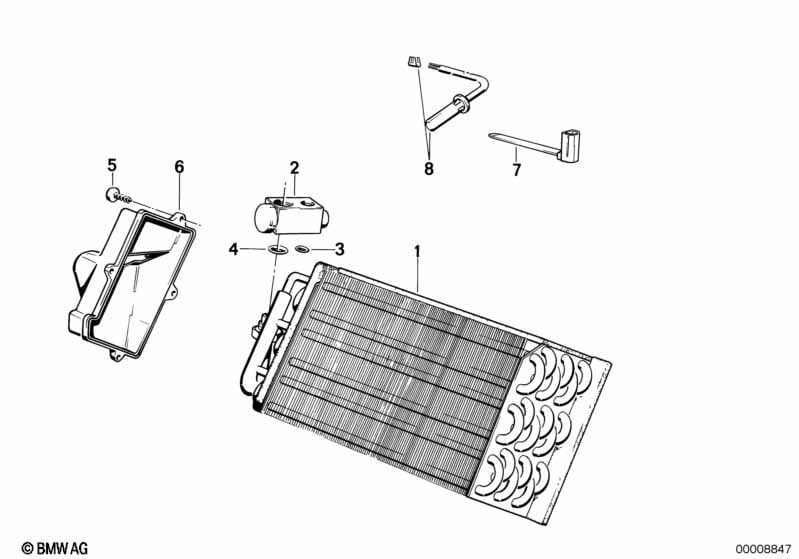

This Evaporator / Expansion valve technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Evaporator | R12/R134A | 1 | 64518391780 | $411.56 | Shop at ECS Tuning | ||||
| 02 | Expansion valve | R134A | 1 | 64518391209 | $129.88 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | D=11.1MM | 1 | 05/1995 | 64508390602 | $1.49 | Shop at ECS Tuning | |||
| 03 | Gasket ring | D=11.1MM | 1 | 64508390602 | $1.49 | Shop at ECS Tuning | ||||
| 04 | Gasket ring | D=14MM | 1 | 64508390603 | $1.49 | Shop at ECS Tuning | ||||
| 05 | Screw | X | 64111370949 | $0.38 | Shop at ECS Tuning | |||||
| 06 | Evaporator cover | 1 | 64111376851 | $17.61 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 318i Evaporator / Expansion valve?
- This technical diagram illustrates the Evaporator / Expansion valve within the Heater and Air Conditioning group for the 3 Series E30 318i produced during 1985. It provides a detailed exploded view of the components, identifying key parts such as the Evaporator (Part #64518391780).
- Which models use the hardware listed in this Evaporator / Expansion valve?
- The hardware and components featured in the Evaporator / Expansion valve are specific to the 3 Series E30 318i produced during 1985. These technical specifications ensure that parts like the Evaporator (64518391780) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Evaporator / Expansion valve assembly?
- Each item in the Evaporator / Expansion valve corresponds to the numbered list below the illustration. For the 3 Series E30 318i, you can identify the Evaporator by locating its position on the schematic, which then links to the official BMW part number 64518391780 for the Heater and Air Conditioning section.
