Coolant pipe for BMW 6 Series E24 635CSi (1982)

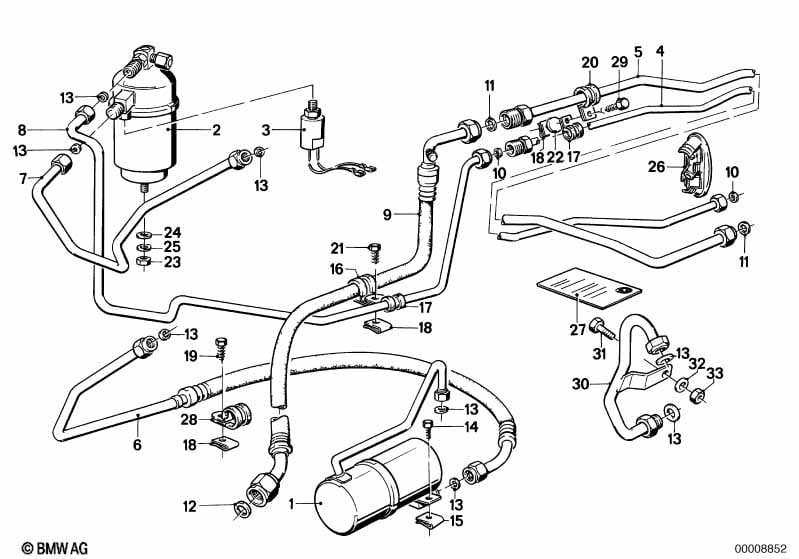

This Coolant pipe technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO WING CELL COMPRESSOR ONLY APPLIES TO ADD.AIR CONDITIO.UNIT |
||||||||||
| 08 | Pressure pipe | 1 | 64531380936 | $69.87 | ENDED | Shop at ECS Tuning | ||||
| 09 | Hose evaporator-compressor | 1 | 09/1986 | 64531386664 | $79.97 | Shop at ECS Tuning | ||||
| 09 | Suction pipe evaporator-compressor | R12/R134A | 1 | 09/1986 | 64539067600 | $67.66 | Shop at ECS Tuning | |||
| ONLY APPLIES TO WING CELL COMPRESSOR | ||||||||||
| 27 | Label "air condition" | 1175G | 1 | 64501380983 | $1.32 | Shop at ECS Tuning | ||||
| 27 | Label "air condition" | 975G | 1 | 07/1975 | 03/1986 | 64501380981 | $2.20 | ENDED | Shop at ECS Tuning | |
| 27 | Label "air condition" | 1075G | 1 | 07/1975 | 03/1986 | 64501380982 | $2.20 | Shop at ECS Tuning | ||
| 27 | Label "air condition" | 1275G | 1 | 10/1977 | 04/1986 | 64501380984 | $6.67 | ENDED | Shop at ECS Tuning | |
Notes
- ENDED = the part has been discontinued (no longer available).
