Air conditioning unit parts for BMW 3 Series E30 320i (1992)

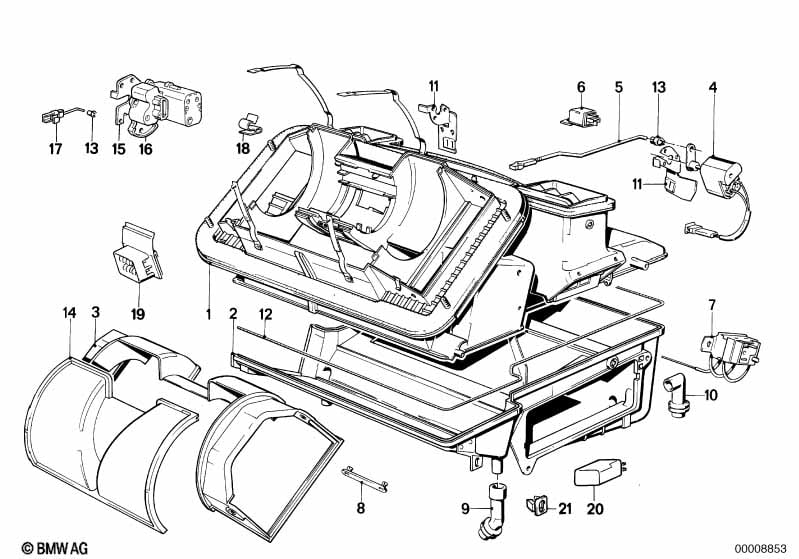

This Air conditioning unit parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Housing top | 1 | 64111386109 | $558.00 | ENDED | Shop at ECS Tuning | ||||
| 01 | Housing top | 1 | 09/1987 | 64111386526 | $656.65 | ENDED | Shop at ECS Tuning | |||
| For vehicles with automatic heater control |
=Yes |
|||||||||
| 01 | Housing top | 1 | 09/1987 | 64111386525 | $634.15 | ENDED | Shop at ECS Tuning | |||
| 02 | Housing bottom | 1 | 64111370696 | $144.09 | Shop at ECS Tuning | |||||
| For vehicles with automatic heater control |
=Yes |
|||||||||
| 02 | Housing bottom | 1 | 09/1987 | 64111386043 | $46.71 | ENDED | Shop at ECS Tuning | |||
| 03 | Blower housing | 1 | 64111372507 | $145.50 | Shop at ECS Tuning | |||||
| 04 | Actuator | 2 | 64111372511 | $225.91 | Shop at ECS Tuning | |||||
| 05 | Connection rod | 2 | 64111372512 | $10.55 | Shop at ECS Tuning | |||||
| 06 | Mini-relay | 2 | 01/1993 | 61311243086 | $28.88 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Relay, change-over contact,signal violet | 2 | 61361388911 | $13.96 | Shop at ECS Tuning | |||||
| 07 | Evaporator temperature regulator | 1 | 09/1986 | 64508390158 | $141.57 | Shop at ECS Tuning | ||||
| For vehicles with automatic heater control |
=Yes |
|||||||||
| 08 | Connection rod | 2 | 09/1987 | 64111372593 | $8.11 | ENDED | Shop at ECS Tuning | |||
| 09 | Condensation water outlet hose | 2 | 64111370998 | $2.57 | Shop at ECS Tuning | |||||
| 10 | Hose | 1 | 64111370995 | $2.43 | Shop at ECS Tuning | |||||
| 11 | Bracket left | 1 | 64111372635 | $5.76 | ENDED | Shop at ECS Tuning | ||||
| 11 | Bracket right | 1 | 64111372636 | $4.98 | ENDED | Shop at ECS Tuning | ||||
| 12 | Rubber seal | 1 | 64111372637 | $4.02 | ENDED | Shop at ECS Tuning | ||||
| 13 | Clamp | 2 | 64111372638 | $1.72 | ENDED | Shop at ECS Tuning | ||||
| 14 | Blower housing | 1 | 64111370934 | $13.87 | Shop at ECS Tuning | |||||
| For vehicles with automatic heater control |
=Yes |
|||||||||
| 15 | Holder | 1 | 09/1987 | 64111373617 | $5.47 | ENDED | Shop at ECS Tuning | |||
| 16 | Actuator | 1 | 09/1987 | 64111380275 | $492.02 | Shop at ECS Tuning | ||||
| 17 | Connection rod | 1 | 09/1987 | 64111373592 | $3.65 | Shop at ECS Tuning | ||||
| 18 | Clamp | 1 | 09/1987 | 64111368450 | ENDED | Shop at ECS Tuning | ||||
| 19 | Resistor | 1 | 09/1984 | 64116912633 | $38.57 | Shop at ECS Tuning | ||||
| 20 | Evaporator temperature regulator | 1 | 64508390158 | $141.57 | Shop at ECS Tuning | |||||
| 21 | Lock insert | 2 | 64111376327 | $0.80 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 320i Air conditioning unit parts?
- This technical diagram illustrates the Air conditioning unit parts within the Heater and Air Conditioning group for the 3 Series E30 320i produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Housing top (Part #64111386109).
- Which models use the hardware listed in this Air conditioning unit parts?
- The hardware and components featured in the Air conditioning unit parts are specific to the 3 Series E30 320i produced during 1992. These technical specifications ensure that parts like the Housing top (64111386109) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Air conditioning unit parts assembly?
- Each item in the Air conditioning unit parts corresponds to the numbered list below the illustration. For the 3 Series E30 320i, you can identify the Housing top by locating its position on the schematic, which then links to the official BMW part number 64111386109 for the Heater and Air Conditioning section.
