Coolant pipe for BMW 5 Series E28 528e (1987)

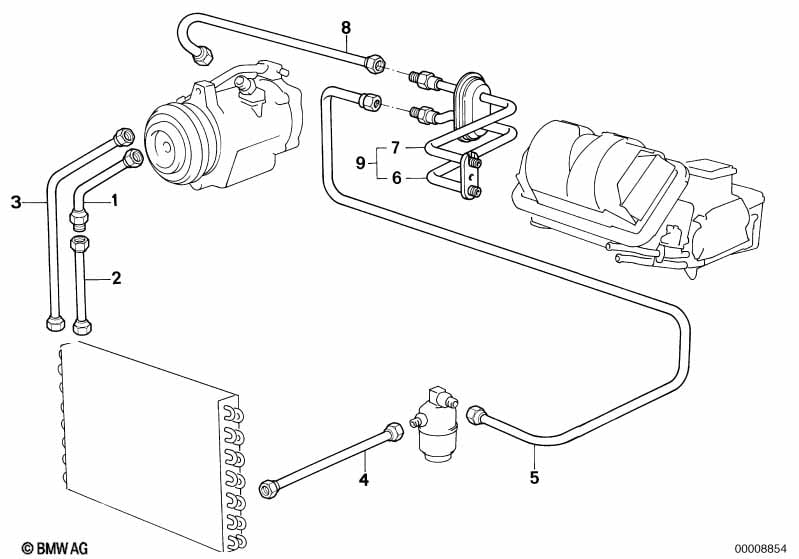

This Coolant pipe technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressure hose assy compressor-condenser | 1 | 09/1984 | 64531376190 | $61.05 | Shop at ECS Tuning | ||||
| 02 | Pressure hose assy compressor-condenser | 1 | 09/1984 | 64531376348 | $40.83 | ENDED | Shop at ECS Tuning | |||
| 04 | Condenser-dryer pressure hose assy | 1 | 64531368114 | $40.83 | ENDED | Shop at ECS Tuning | ||||
| 05 | Pipe-dryer pressure hose | 1 | 64531381185 | $52.88 | ENDED | Shop at ECS Tuning | ||||
| 05 | Pipe-dryer pressure hose | 1 | 09/1984 | 64531376346 | $48.98 | ENDED | Shop at ECS Tuning | |||
| 07 | Tubing | 1 | 09/1986 | 64531381673 | $156.98 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 528e Coolant pipe?
- This technical diagram illustrates the Coolant pipe within the Heater and Air Conditioning group for the 5 Series E28 528e produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Pressure hose assy compressor-condenser (Part #64531376190).
- Which models use the hardware listed in this Coolant pipe?
- The hardware and components featured in the Coolant pipe are specific to the 5 Series E28 528e produced during 1987. These technical specifications ensure that parts like the Pressure hose assy compressor-condenser (64531376190) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Coolant pipe assembly?
- Each item in the Coolant pipe corresponds to the numbered list below the illustration. For the 5 Series E28 528e, you can identify the Pressure hose assy compressor-condenser by locating its position on the schematic, which then links to the official BMW part number 64531376190 for the Heater and Air Conditioning section.
