Drying container/small parts for BMW 5 Series E28 M535i (1987)

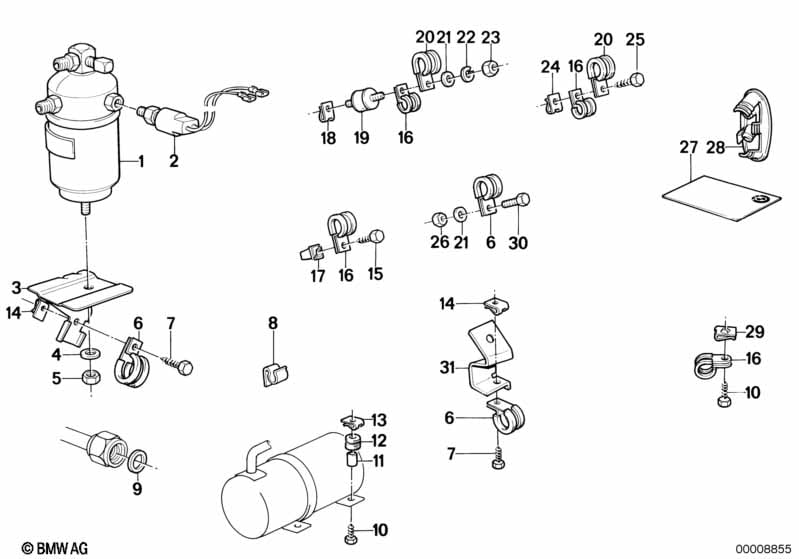

This Drying container/small parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Drying container | R12/R134A | 1 | 64538363555 | $162.98 | Shop at ECS Tuning | ||||
| 02 | Safety pressure switch | R12/R134A | 1 | 64538363859 | $71.71 | Shop at ECS Tuning | ||||
| 03 | Hose clamp | 1 | 64531370089 | $13.39 | Shop at ECS Tuning | |||||
| 04 | Washer | 10-200HV-ZNNIV | 1 | 07119907114 | Shop at ECS Tuning | |||||
| 05 | Self-locking hex nut | M10 | 1 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Clamp | D=22/6,4 | X | 64531357128 | $1.91 | Shop at ECS Tuning | ||||
| 07 | Hex head screw | ST6,3X19-C-Z2 | X | 07119916967 | $0.29 | Shop at ECS Tuning | ||||
| 08 | Clamp | X | 07147202015 | Shop at ECS Tuning | ||||||
| 09 | Gasket ring | D=11.1MM | X | 05/1995 | 64508390602 | $1.49 | Shop at ECS Tuning | |||
| 09 | Gasket ring | D=7,65MM | X | 64508390601 | $1.93 | Shop at ECS Tuning | ||||
| 09 | Gasket ring | D=11.1MM | X | 64508390602 | $1.49 | Shop at ECS Tuning | ||||
| 09 | Gasket ring | D=14MM | X | 64508390603 | $1.49 | Shop at ECS Tuning | ||||
| 09 | Gasket ring | D=17,17MM | X | 64508390604 | $2.02 | Shop at ECS Tuning | ||||
| 09 | Gasket ring | D=6.8 R12/R134A | X | 64508390605 | $2.51 | Shop at ECS Tuning | ||||
| 09 | Conical ring | D=20MM | X | 64531350491 | $1.23 | Shop at ECS Tuning | ||||
| 10 | Hex head screw | ST4,8X13-C | X | 07119916813 | $0.13 | Shop at ECS Tuning | ||||
| 10 | Hex head screw | ST4,8X22-C-Z2 | X | 07119916944 | $0.25 | Shop at ECS Tuning | ||||
| 11 | Bush | 2 | 31421236241 | $0.92 | ENDED | Shop at ECS Tuning | ||||
| 12 | Rubber grommet | 2 | 07147267586 | Shop at ECS Tuning | ||||||
| 13 | Body nut | ST 4,8-4-ZNS3 | X | 07129904224 | $0.11 | Shop at ECS Tuning | ||||
| 14 | Body nut | ST6,3-2-ZNS3 | X | 07129904232 | $0.16 | Shop at ECS Tuning | ||||
| 15 | Hex head screw | ST6,3X16-C-Z1 | X | 07119916965 | $0.27 | Shop at ECS Tuning | ||||
| 15 | Hex head screw | ST6,3X19-C-Z1 | X | 07119916970 | $0.30 | Shop at ECS Tuning | ||||
| 15 | Hi-lo screw | 4,9X19 | X | 64501380494 | $0.88 | Shop at ECS Tuning | ||||
| 16 | Clamp | D=28/6,4 | X | 11531267334 | $1.61 | Shop at ECS Tuning | ||||
| 16 | Pipe clamp | D=26/6,4 | X | 11531279400 | $1.61 | Shop at ECS Tuning | ||||
| 16 | Clamp | D=10/6,4 | X | 12141305028 | $1.58 | Shop at ECS Tuning | ||||
| 16 | Clamp | D=13/6,4 | X | 12427840405 | $1.52 | Shop at ECS Tuning | ||||
| 16 | Clamp | D=24/6,4 | X | 64501365999 | $1.67 | ENDED | Shop at ECS Tuning | |||
| 17 | Expanding nut | ST 6.3 | X | 64121379221 | $0.60 | Shop at ECS Tuning | ||||
| 18 | C-clip nut | M6-ZNS3 | X | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 19 | Rubber Mounting | 1 | 11651267085 | $4.22 | Shop at ECS Tuning | |||||
| 20 | Clamp | D=16/6,4 | X | 12427840406 | $1.52 | Shop at ECS Tuning | ||||
| 21 | Washer | A6,4-ZNNIV SI | X | 07119904202 | Shop at ECS Tuning | |||||
| 22 | Spring washer | B6 | X | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 23 | Hex nut | M6-8-ZNNIV SI | X | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 24 | Body nut | ST6,3-1-ZNS3 | X | 07129904231 | Shop at ECS Tuning | |||||
| 25 | Hex head screw | ST6,3X22-C-Z1 | X | 07119916969 | $0.29 | ENDED | Shop at ECS Tuning | |||
| 26 | Self-locking hex nut | M6-10 ZN | X | 12/1987 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | ||
| 26 | Self-locking hex nut | M6 ZNNIV SI | X | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 27 | Label "air condition" | 975G | X | 64501380981 | $2.20 | ENDED | Shop at ECS Tuning | |||
| 27 | Label "air condition" | 1075G | X | 64501380982 | $2.20 | Shop at ECS Tuning | ||||
| 28 | Rubber grommet | X | 64531368116 | $14.71 | ENDED | Shop at ECS Tuning | ||||
| 29 | Body nut | ST 4,8-7-ZNS3 | X | 07129904226 | $0.09 | Shop at ECS Tuning | ||||
| 30 | Hex bolt | M6X16-8.8-ZNS3 | X | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 31 | Holder | 1 | 64531371367 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 M535i Drying container/small parts?
- This technical diagram illustrates the Drying container/small parts within the Heater and Air Conditioning group for the 5 Series E28 M535i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Drying container (Part #64538363555).
- Which models use the hardware listed in this Drying container/small parts?
- The hardware and components featured in the Drying container/small parts are specific to the 5 Series E28 M535i produced during 1987. These technical specifications ensure that parts like the Drying container (64538363555) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Drying container/small parts assembly?
- Each item in the Drying container/small parts corresponds to the numbered list below the illustration. For the 5 Series E28 M535i, you can identify the Drying container by locating its position on the schematic, which then links to the official BMW part number 64538363555 for the Heater and Air Conditioning section.
