Drying container/small parts for BMW 7 Series E23 730 (1979)

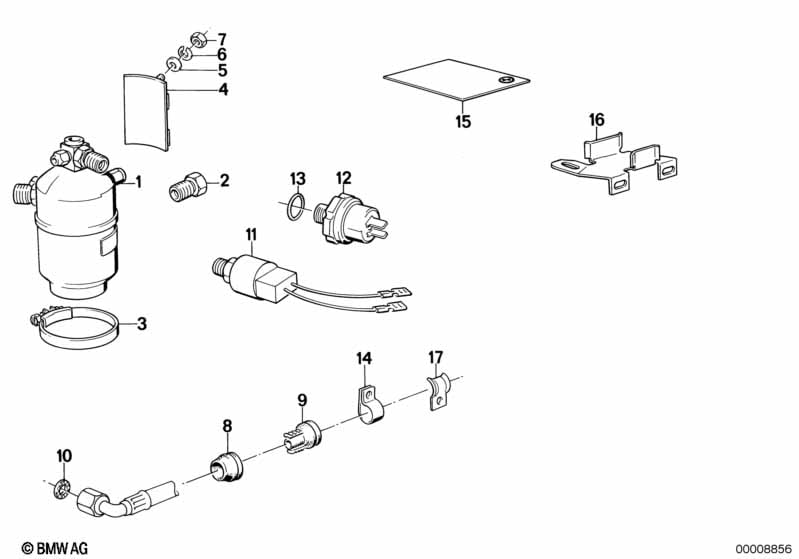

This Drying container/small parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 730. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Drying container | R12/R134A | 1 | 64538363554 | $205.44 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Safety pressure switch | R12/R134A | 1 | 64538363859 | $71.71 | Shop at ECS Tuning | ||||
| 02 | Screw plug | 1 | 64531371764 | $14.44 | Shop at ECS Tuning | |||||
| 03 | Hose clamp | 2 | 11621325320 | $2.68 | ENDED | Shop at ECS Tuning | ||||
| 04 | Holder | 1 | 64531352066 | ENDED | Shop at ECS Tuning | |||||
| 05 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 06 | Spring washer | B8 | 2 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M8-8-ZNS3 | 2 | 05/1986 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 07 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 08 | Rubber grommet | 4 | 64214774144 | $1.46 | Shop at ECS Tuning | |||||
| 09 | Rubber grommet | 2 | 64531365057 | $4.35 | Shop at ECS Tuning | |||||
| 10 | Gasket ring | D=11.1MM | X | 05/1995 | 64508390602 | $1.49 | Shop at ECS Tuning | |||
| 10 | Gasket ring | X | 64508374877 | $1.24 | ENDED | Shop at ECS Tuning | ||||
| 10 | Gasket ring | D=7,65MM | X | 64508390601 | $1.93 | Shop at ECS Tuning | ||||
| 10 | Gasket ring | D=11.1MM | X | 64508390602 | $1.49 | Shop at ECS Tuning | ||||
| 10 | Gasket ring | D=14MM | X | 64508390603 | $1.49 | Shop at ECS Tuning | ||||
| 10 | Gasket ring | D=17,17MM | X | 64508390604 | $2.02 | Shop at ECS Tuning | ||||
| 10 | Gasket ring | D=6.8 R12/R134A | X | 64508390605 | $2.51 | Shop at ECS Tuning | ||||
| 11 | Safety pressure switch | 1 | 64531386971 | $69.07 | ENDED | Shop at ECS Tuning | ||||
| 11 | Safety pressure switch | R12/R134A | 1 | 64538363859 | $71.71 | Shop at ECS Tuning | ||||
| 12 | Safety pressure switch | 1 | 64531370463 | $34.43 | ENDED | Shop at ECS Tuning | ||||
| 12 | Safety pressure switch | R12/R134A | 1 | 64538390536 | $92.49 | ENDED | Shop at ECS Tuning | |||
| 12 | Safety pressure switch | R12/R134A | 1 | 64538363858 | $56.83 | Shop at ECS Tuning | ||||
| 13 | Gasket ring | 1 | 64501365078 | $2.79 | Shop at ECS Tuning | |||||
| 14 | Clamp | D=28/6,4 | 2 | 11531267334 | $1.61 | Shop at ECS Tuning | ||||
| 14 | Clamp | D=10/6,4 | X | 12141305028 | $1.58 | Shop at ECS Tuning | ||||
| 14 | Clamp | D=16/6,4 | X | 12427840406 | $1.52 | Shop at ECS Tuning | ||||
| 14 | Clamp | D=20/6,4 | X | 64531356622 | $1.72 | Shop at ECS Tuning | ||||
| 14 | Clamp | D=22/6,4 | X | 64531357128 | $1.91 | Shop at ECS Tuning | ||||
| 14 | Hose clamp | D=28/8,4 | X | 64531363567 | ENDED | Shop at ECS Tuning | ||||
| 15 | Label "air condition" | 1275G | 1 | 64501380984 | $6.67 | ENDED | Shop at ECS Tuning | |||
| 16 | Carrier | 1 | 64501364941 | ENDED | Shop at ECS Tuning | |||||
| 17 | Hose clamp | X | 64531363604 | $1.40 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
