Add.air conditio.unit for BMW 6 Series E24 635CSi (1989)

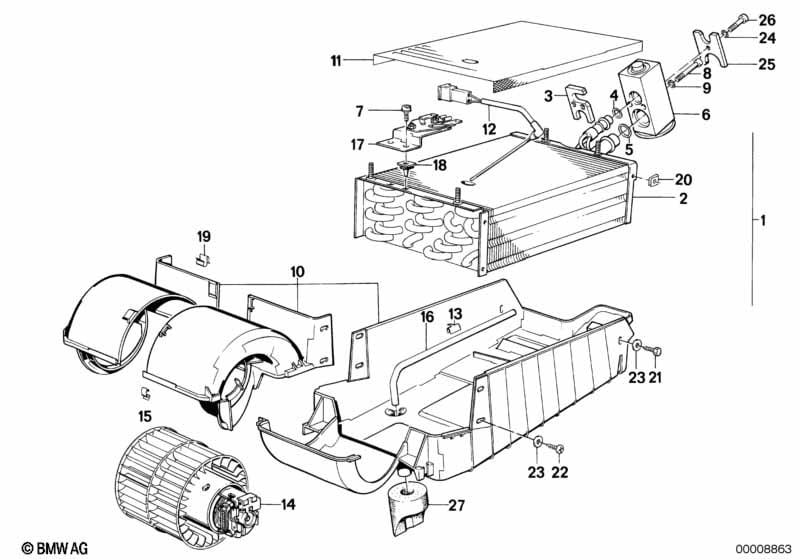

This Add.air conditio.unit technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Add.air conditio.unit | 1 | 64511377950 | $729.26 | ENDED | Shop at ECS Tuning | ||||
| 02 | Evaporator | 1 | 64501380571 | $410.90 | Shop at ECS Tuning | |||||
| 03 | Plate | 1 | 64111380572 | $7.27 | Shop at ECS Tuning | |||||
| 04 | Gasket ring | D=11.1MM | 1 | 05/1995 | 64508390602 | $1.49 | Shop at ECS Tuning | |||
| 04 | Gasket ring | 1 | 64508374877 | $1.24 | ENDED | Shop at ECS Tuning | ||||
| 04 | Gasket ring | D=11.1MM | 1 | 64508390602 | $1.49 | Shop at ECS Tuning | ||||
| 05 | Gasket ring | D=14MM | 1 | 64508390603 | $1.49 | Shop at ECS Tuning | ||||
| 06 | Expansion valve | R134A | 1 | 64501377051 | $64.95 | Shop at ECS Tuning | ||||
| 07 | Screw | 4 | 07119904170 | $0.17 | Shop at ECS Tuning | |||||
| 08 | Fillister-head screw | M5X35 | 2 | 07119902616 | $1.78 | Shop at ECS Tuning | ||||
| 09 | Circlip | 2 | 64111380574 | $1.52 | Shop at ECS Tuning | |||||
| 10 | Housing | 1 | 64501380044 | ENDED | Shop at ECS Tuning | |||||
| 11 | Grid | 1 | 64501380507 | $71.15 | ENDED | Shop at ECS Tuning | ||||
| 12 | Evaporator temperature sensor | 1 | 64511386920 | Shop at ECS Tuning | ||||||
| 13 | Clamp | 1 | 64501380885 | $0.39 | ENDED | Shop at ECS Tuning | ||||
| 14 | Blower unit | 1 | 64511380499 | $214.42 | ENDED | Shop at ECS Tuning | ||||
| 15 | Clamp | X | 64501380503 | $0.22 | ENDED | Shop at ECS Tuning | ||||
| 16 | Pipe | 1 | 64501380884 | ENDED | Shop at ECS Tuning | |||||
| 17 | Transistor | 1 | 64111381784 | $90.06 | Shop at ECS Tuning | |||||
| 18 | Expanding nut | 2 | 64501380601 | $0.59 | ENDED | Shop at ECS Tuning | ||||
| 19 | Cable clamp | 2 | 12527575212 | $0.78 | Shop at ECS Tuning | |||||
| 19 | Cable clamp | 2 | 25111220837 | $0.68 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Fillister-head screw | M8X50-8.8-ZNS3 | 2 | 07119901034 | $1.42 | ENDED | Shop at ECS Tuning | |||
| 20 | Body nut | 4 | 64501380602 | $0.39 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Fillister-head screw | M8X50-8.8-ZNS3 | 2 | 07119901034 | $1.42 | ENDED | Shop at ECS Tuning | |||
| 21 | Sheet metal screw | 4,2X16 | 2 | 07119904265 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Fillister-head screw | M8X50-8.8-ZNS3 | 2 | 07119901034 | $1.42 | ENDED | Shop at ECS Tuning | |||
| 22 | Fillister head self-tapping screw | ST4,2X13 | 6 | 07119907946 | $0.20 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Fillister-head screw | M8X50-8.8-ZNS3 | 2 | 07119901034 | $1.42 | ENDED | Shop at ECS Tuning | |||
| 23 | Washer | 4-200 HV-ZNS3 | 4 | 07119904207 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Fillister-head screw | M8X50-8.8-ZNS3 | 2 | 07119901034 | $1.42 | ENDED | Shop at ECS Tuning | |||
| 24 | Circlip | 1 | 64111380574 | $1.52 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Fillister-head screw | M8X50-8.8-ZNS3 | 2 | 07119901034 | $1.42 | ENDED | Shop at ECS Tuning | |||
| 25 | Plate | 1 | 64111380573 | $8.10 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Fillister-head screw | M8X50-8.8-ZNS3 | 2 | 07119901034 | $1.42 | ENDED | Shop at ECS Tuning | |||
| 26 | ISA screw | M6X16-8.8-ZNNIV | 1 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 27 | Gasket ring | 1 | 64511380721 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 635CSi Add.air conditio.unit?
- This technical diagram illustrates the Add.air conditio.unit within the Heater and Air Conditioning group for the 6 Series E24 635CSi produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Add.air conditio.unit (Part #64511377950).
- Which models use the hardware listed in this Add.air conditio.unit?
- The hardware and components featured in the Add.air conditio.unit are specific to the 6 Series E24 635CSi produced during 1989. These technical specifications ensure that parts like the Add.air conditio.unit (64511377950) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Add.air conditio.unit assembly?
- Each item in the Add.air conditio.unit corresponds to the numbered list below the illustration. For the 6 Series E24 635CSi, you can identify the Add.air conditio.unit by locating its position on the schematic, which then links to the official BMW part number 64511377950 for the Heater and Air Conditioning section.
