Add.air conditio.unit for BMW 6 Series E24 M635CSi (1988)

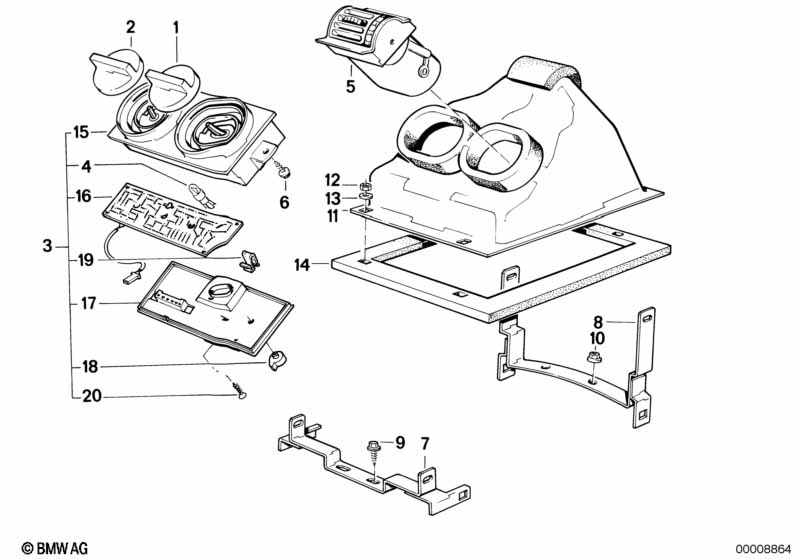

This Add.air conditio.unit technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 M635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rotary knob | 1 | 64111367696 | $7.37 | Shop at ECS Tuning | |||||
| 02 | Knob temperature | 1 | 64111367695 | $8.38 | Shop at ECS Tuning | |||||
| 03 | Switch | 1 | 64111380048 | $568.61 | Shop at ECS Tuning | |||||
| 04 | Bulb | 1 | 64501380520 | $2.58 | ENDED | Shop at ECS Tuning | ||||
| 05 | Fresh air grille, left | 1 | 64221381347 | $15.71 | Shop at ECS Tuning | |||||
| 05 | Fresh air grille, right | 1 | 64221381348 | $15.71 | ENDED | Shop at ECS Tuning | ||||
| 06 | Fillister head self-tapping screw | ST4,8X16-Z1 | 2 | 07119907925 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Bracket front | 1 | 64501377957 | ENDED | Shop at ECS Tuning | |||||
| 08 | Bracket rear | 1 | 64501377956 | $12.50 | ENDED | Shop at ECS Tuning | ||||
| 09 | Sheet metal screw | 4,2X16 | 2 | 07119904265 | Shop at ECS Tuning | |||||
| 10 | Self-locking hex nut | M6 | 4 | 51417053138 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Cold air duct center | 1 | 64511380690 | $13.41 | ENDED | Shop at ECS Tuning | ||||
| 12 | Hex nut | M5-8-ZNNIV SI | 4 | 07119905729 | Shop at ECS Tuning | |||||
| 13 | Washer | 5.3-140 HV-ZNS | 4 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 14 | Sealing frame | 1 | 64501380605 | $11.27 | ENDED | Shop at ECS Tuning | ||||
| 15 | Housing | 1 | 64511381360 | $204.50 | ENDED | Shop at ECS Tuning | ||||
| 16 | Printed circuit board f air condit.ctrl | 1 | 64511381359 | $170.39 | ENDED | Shop at ECS Tuning | ||||
| 17 | Cover | 1 | 64511381358 | ENDED | Shop at ECS Tuning | |||||
| 18 | Cam disc | 1 | 64511381362 | ENDED | Shop at ECS Tuning | |||||
| 19 | Fixing clamp | 1 | 11787547213 | $0.40 | Shop at ECS Tuning | |||||
| 20 | Fillister head self-tapping screw | ST2,9X9,5 | 5 | 07119907707 | $0.09 | Shop at ECS Tuning |
