Air cond.compressor-supporting bracket for BMW 3 Series E30 318is (1991)

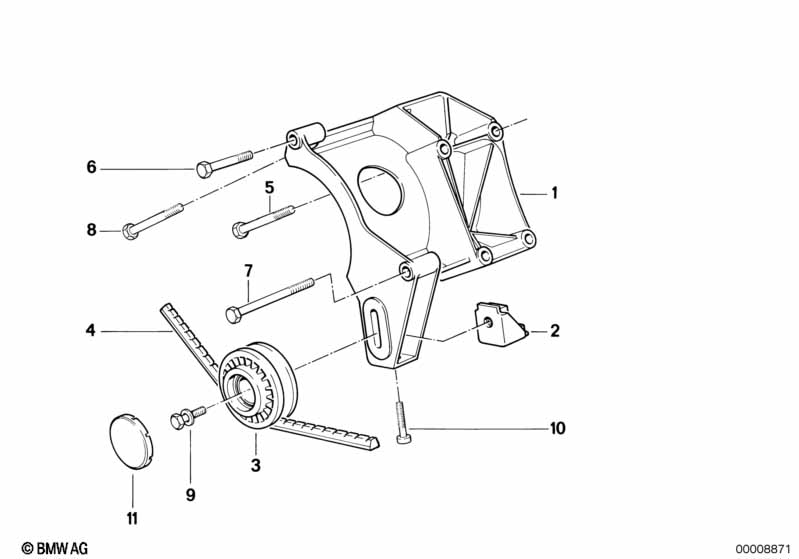

This Air cond.compressor-supporting bracket technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket | 1 | 64551717918 | $238.83 | ENDED | Shop at ECS Tuning | ||||
| 02 | Support | 1 | 64551717921 | $8.02 | Shop at ECS Tuning | |||||
| 03 | Idler | KLIMA | 1 | 64551721844 | $54.39 | Shop at ECS Tuning | ||||
| 04 | Fan belt | 12,5 X 885 | 1 | 64551734669 | $18.92 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M8X50 | 4 | 07119912517 | $0.82 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M8X60 10.9 PHR | 1 | 07119912531 | $1.40 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M8X110-8.8 | 1 | 07119906728 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M8X70 | 4 | 07119912649 | $2.07 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M8X20-ZNS3 | 1 | 07147165618 | $0.73 | Shop at ECS Tuning | ||||
| 10 | Fillister-head screw | M6X40 | 1 | 64551721850 | $0.70 | ENDED | Shop at ECS Tuning | |||
| 11 | Protection cap adjusting pulley | 1 | 11281727159 | $2.37 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 318is Air cond.compressor-supporting bracket?
- This technical diagram illustrates the Air cond.compressor-supporting bracket within the Heater and Air Conditioning group for the 3 Series E30 318is produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Supporting bracket (Part #64551717918).
- Which models use the hardware listed in this Air cond.compressor-supporting bracket?
- The hardware and components featured in the Air cond.compressor-supporting bracket are specific to the 3 Series E30 318is produced during 1991. These technical specifications ensure that parts like the Supporting bracket (64551717918) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Air cond.compressor-supporting bracket assembly?
- Each item in the Air cond.compressor-supporting bracket corresponds to the numbered list below the illustration. For the 3 Series E30 318is, you can identify the Supporting bracket by locating its position on the schematic, which then links to the official BMW part number 64551717918 for the Heater and Air Conditioning section.
