Electric parts for AC unit for BMW 3 Series E36 320i (1995)

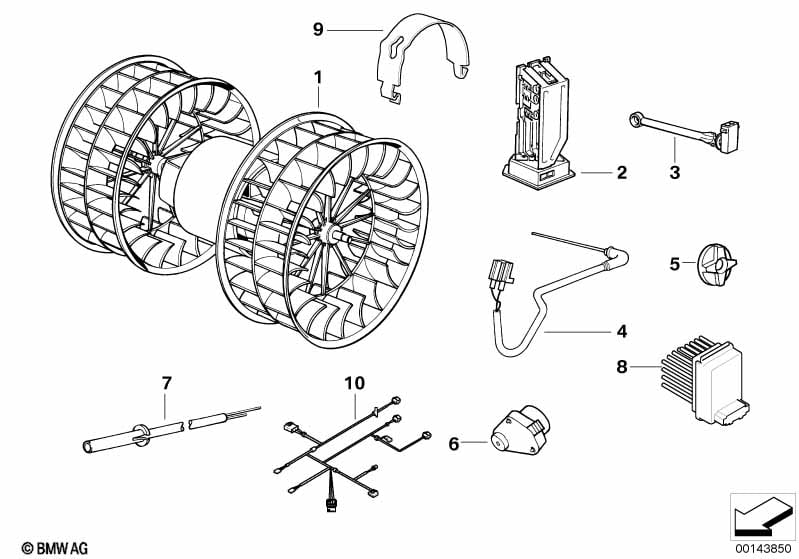

This Electric parts for AC unit technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Blower unit | 1 | 64118390208 | $456.95 | SI 640292464 | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning |
S530A=Yes |
|||||||||
| 02 | Blower resistor | 1 | 64118391749 | $59.40 | Shop at ECS Tuning | |||||
| 03 | Temperature sensor, heater | 2 | 64111374242 | $33.45 | Shop at ECS Tuning | |||||
| 04 | Evaporator temperature sensor | 1 | 64518364458 | $33.45 | Shop at ECS Tuning | |||||
| 05 | Rubber grommet | 1 | 64511377494 | $6.63 | Shop at ECS Tuning | |||||
| 07 | Repair kit temperature sensor | 1 | 64111378849 | $46.67 | Shop at ECS Tuning | |||||
| For vehicles with Automatic air conditioning |
S534A=Yes |
|||||||||
| 08 | Final Stage Unit | 1 | 03/1995 | 64116929540 | $145.30 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket housing | 5 POL. | 1 | 03/1995 | 61138377762 | $1.52 | ENDED | Shop at ECS Tuning | ||
| 09 | Holder | 1 | 64118390874 | $5.02 | Shop at ECS Tuning | |||||
| For vehicles with Automatic air conditioning |
S534A=Yes |
|||||||||
| 10 | Wiring for air conditioner | 1 | 61128362295 | $265.84 | ENDED | Shop at ECS Tuning | ||||
Notes
- SI = Service Information
- ENDED = the part has been discontinued (no longer available).
