Heater radiator Behr for BMW 3 Series E36 M3 (1999)

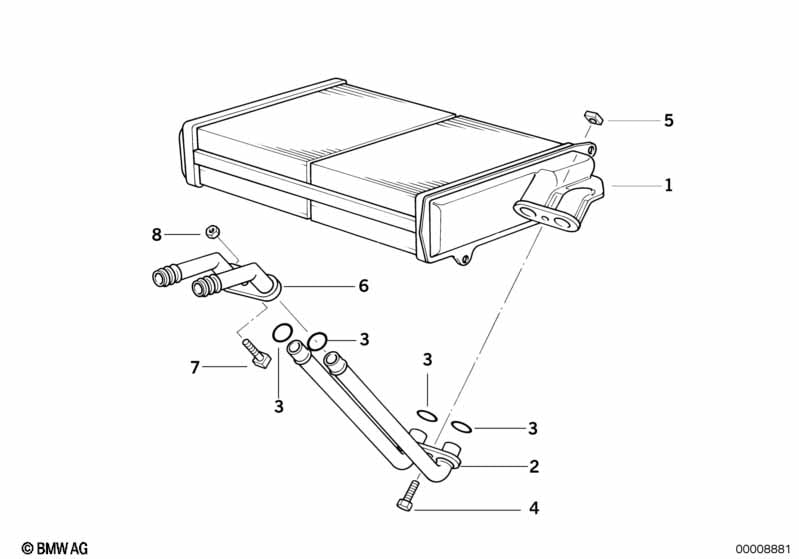

This Heater radiator Behr technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Radiator cap |
=Yes |
|||||||||
| 01 | Heater radiator | 1 | 64118390435 | $216.22 | SI 641091408 | Shop at ECS Tuning | ||||
| additionally required parts: RADIATOR CAP |
||||||||||
| 02 | Double pipe | 1 | 07/1992 | 64118391783 | $25.35 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | D=20,29MM | 4 | 64118379131 | $0.51 | Shop at ECS Tuning | ||||
| 06 | Connector | 1 | 07/1992 | 64118391141 | $35.13 | Shop at ECS Tuning | ||||
| 07 | Square headed bolt | 1 | 64111394287 | $2.22 | SI 641091408 | Shop at ECS Tuning | ||||
| 08 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
Notes
- SI = Service Information
