Housing parts, heater Behr for BMW 3 Series E36 320i (1995)

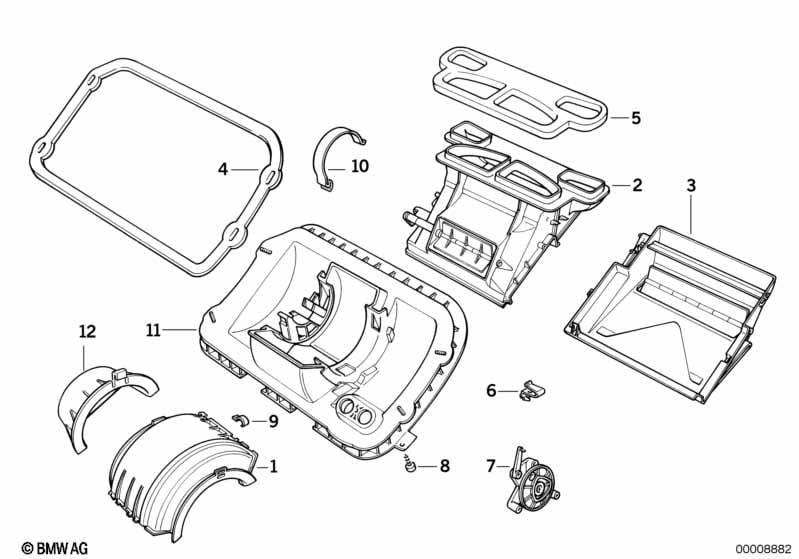

This Housing parts, heater Behr technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover | 1 | 64118390400 | $24.47 | SI 641091408 | Shop at ECS Tuning | ||||
| 02 | Housing center | 1 | 64118390404 | $189.05 | Shop at ECS Tuning | |||||
| 03 | Housing bottom | 1 | 64118390413 | $245.87 | Shop at ECS Tuning | |||||
| 04 | Sealing frame | 1 | 64118390433 | $35.09 | Shop at ECS Tuning | |||||
| 05 | Sealing frame | 1 | 64111387980 | $39.22 | SI 641091408 | Shop at ECS Tuning | ||||
| 06 | Clamp | 1 | 64111384433 | $0.53 | SI 641091408 | Shop at ECS Tuning | ||||
| 07 | Gearbox flap position | 1 | 64118390422 | $151.61 | Shop at ECS Tuning | |||||
| 08 | Fillister head screw | 4 X 18 | 1 | 64111394237 | $0.23 | Shop at ECS Tuning | ||||
| 09 | Clamp | X | 64111370938 | $0.38 | Shop at ECS Tuning | |||||
| 09 | Clamp | 50 MM | X | 64118390714 | $3.70 | Shop at ECS Tuning | ||||
| 10 | Shackle | 1 | 64118390436 | $11.37 | Shop at ECS Tuning | |||||
| 11 | Housing upper part | 1 | 07/1992 | 64118391143 | $189.05 | ENDED | Shop at ECS Tuning | |||
| 12 | Covering cap left | 1 | 64118390831 | $23.55 | Shop at ECS Tuning | |||||
| 12 | Covering cap right | 1 | 64118390832 | $22.87 | Shop at ECS Tuning | |||||
| For vehicles with Microfilter |
=Yes |
|||||||||
| 12 | Covering cap left | 1 | 64118390833 | ENDED | Shop at ECS Tuning | |||||
| 12 | Covering cap right | 1 | 64118390834 | ENDED | Shop at ECS Tuning | |||||
Notes
- SI = Service Information
- ENDED = the part has been discontinued (no longer available).
