Air condition. control with microfilter for BMW 5 Series E34 530i (1990)

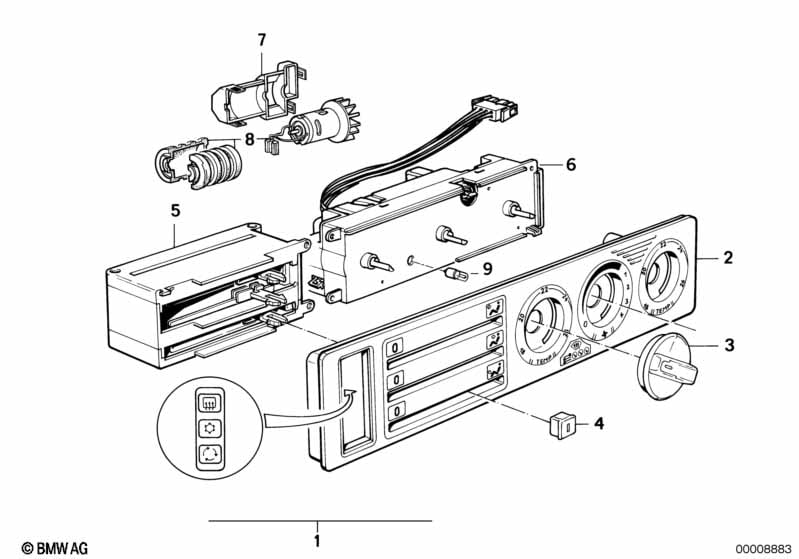

This Air condition. control with microfilter technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air Conditioning Control | 1 | 06/1990 | 11/1990 | 64111389628 | $470.95 | ENDED | Shop at ECS Tuning | ||
| 02 | Front plate of controls air conditioner | 1 | 06/1990 | 11/1990 | 64111389638 | $101.62 | Shop at ECS Tuning | |||
| 03 | Knob temperature | 3 | 06/1990 | 11/1990 | 64111384292 | $117.73 | Shop at ECS Tuning | |||
| 04 | Button | 3 | 06/1990 | 11/1990 | 64111384293 | $12.26 | Shop at ECS Tuning | |||
| 05 | Heater control | 1 | 06/1990 | 11/1990 | 64111389627 | $117.73 | Shop at ECS Tuning | |||
| 06 | Control unit f heater control | 1 | 06/1990 | 11/1990 | 64111389637 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO AUC | ||||||||||
| 06 | Control unit f heater control AUC | 1 | 06/1990 | 11/1990 | 64118351151 | $339.26 | ENDED | Shop at ECS Tuning | ||
| 07 | Cover | 1 | 06/1990 | 11/1990 | 64111374245 | $3.61 | Shop at ECS Tuning | |||
| 08 | Interior temperature sensor fan | 1 | 06/1990 | 11/1990 | 64118390150 | $117.73 | Shop at ECS Tuning | |||
| 09 | Bulb | 12V 1,2W | 2 | 06/1990 | 11/1990 | 62111391777 | $9.52 | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 530i Air condition. control with microfilter?
- This technical diagram illustrates the Air condition. control with microfilter within the Heater and Air Conditioning group for the 5 Series E34 530i produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Air Conditioning Control (Part #64111389628).
- Which models use the hardware listed in this Air condition. control with microfilter?
- The hardware and components featured in the Air condition. control with microfilter are specific to the 5 Series E34 530i produced during 1990. These technical specifications ensure that parts like the Air Conditioning Control (64111389628) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Air condition. control with microfilter assembly?
- Each item in the Air condition. control with microfilter corresponds to the numbered list below the illustration. For the 5 Series E34 530i, you can identify the Air Conditioning Control by locating its position on the schematic, which then links to the official BMW part number 64111389628 for the Heater and Air Conditioning section.
