Connection Independent heater for BMW 5 Series E28 M535i (1987)

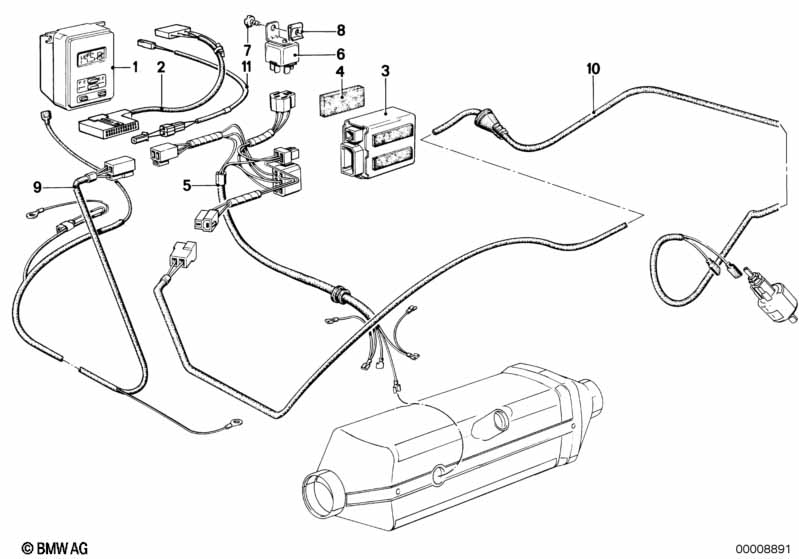

This Connection Independent heater technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Digital clock-timer f. additional heater | 24H LCD | 1 | 62131370445 | ENDED | Shop at ECS Tuning | ||||
| 02 | Wiring clock/additional heater | 1 | 61111369926 | $43.25 | ENDED | Shop at ECS Tuning | ||||
| 03 | Control unit auxiliary heater | 1 | 64121376694 | $333.12 | ENDED | Shop at ECS Tuning | ||||
| 04 | Gasket | 1 | 64111355685 | $0.66 | ENDED | Shop at ECS Tuning | ||||
| 05 | Wiring additional heater | 1 | 61121371359 | $141.73 | ENDED | Shop at ECS Tuning | ||||
| 06 | Relay | 1 | 61321358198 | +core | Shop at ECS Tuning | |||||
| 07 | Fillister head self-tapping screw | ST4,8X13 | 1 | 07119907786 | $0.11 | Shop at ECS Tuning | ||||
| 08 | Plug-in nut | M5 | 1 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 09 | Wiring additional heater | 1 | 61121371243 | $28.74 | ENDED | Shop at ECS Tuning | ||||
| 10 | Cable electr.petrol pump | 1 | 61121365366 | $21.99 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
