Additional fuel pump for BMW 5 Series E34 520i (1990)

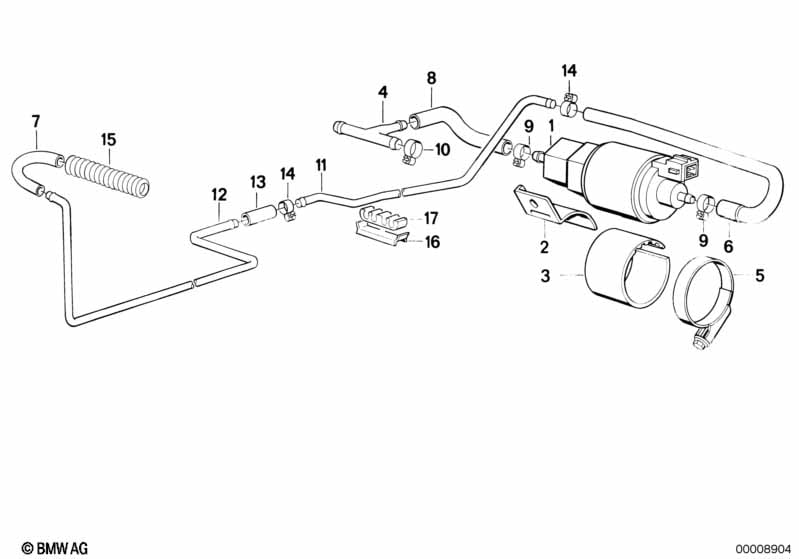

This Additional fuel pump technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel pump | 1 | 02/1989 | 64129143157 | Shop at ECS Tuning | |||||
| 02 | Braket fuel pump | 1 | 02/1989 | 64121389027 | Shop at ECS Tuning | |||||
| 03 | Base | 1 | 02/1989 | 64121378218 | Shop at ECS Tuning | |||||
| 04 | T-Connector | 1 | 02/1989 | 64121378217 | ENDED | Shop at ECS Tuning | ||||
| 05 | Hose clamp | 1 | 02/1989 | 64121382617 | Shop at ECS Tuning | |||||
| 06 | Hose | 320MM | 2 | 02/1989 | 64121388211 | Shop at ECS Tuning | ||||
| 07 | Hose | 320MM | 1 | 02/1989 | 64121388211 | Shop at ECS Tuning | ||||
| 08 | Hose | 2 | 02/1989 | 64121384432 | Shop at ECS Tuning | |||||
| 10 | Hose clamp | 13,1-15,3 | 2 | 02/1989 | 16121176918 | $1.76 | Shop at ECS Tuning | |||
| 11 | Auxiliary heating fuel pipe | 1208MM | 1 | 02/1989 | 64121382973 | ENDED | Shop at ECS Tuning | |||
| 12 | Fuel pipe | 1846MM | 1 | 02/1989 | 64121389414 | Shop at ECS Tuning | ||||
| 13 | Fuel hose | 126MM | 1 | 02/1989 | 64128379561 | $11.94 | Shop at ECS Tuning | |||
| 15 | Protective hose | 360MM | 1 | 02/1989 | 64121388391 | ENDED | Shop at ECS Tuning | |||
| 16 | Holder | X | 02/1989 | 34321379024 | $0.64 | Shop at ECS Tuning | ||||
| 17 | Clamp | X | 02/1989 | 64121382994 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 520i Additional fuel pump?
- This technical diagram illustrates the Additional fuel pump within the Heater and Air Conditioning group for the 5 Series E34 520i produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Fuel pump (Part #64129143157).
- Which models use the hardware listed in this Additional fuel pump?
- The hardware and components featured in the Additional fuel pump are specific to the 5 Series E34 520i produced during 1990. These technical specifications ensure that parts like the Fuel pump (64129143157) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Additional fuel pump assembly?
- Each item in the Additional fuel pump corresponds to the numbered list below the illustration. For the 5 Series E34 520i, you can identify the Fuel pump by locating its position on the schematic, which then links to the official BMW part number 64129143157 for the Heater and Air Conditioning section.
