Electric parts for AC unit for BMW 7 Series E38 740i (1996)

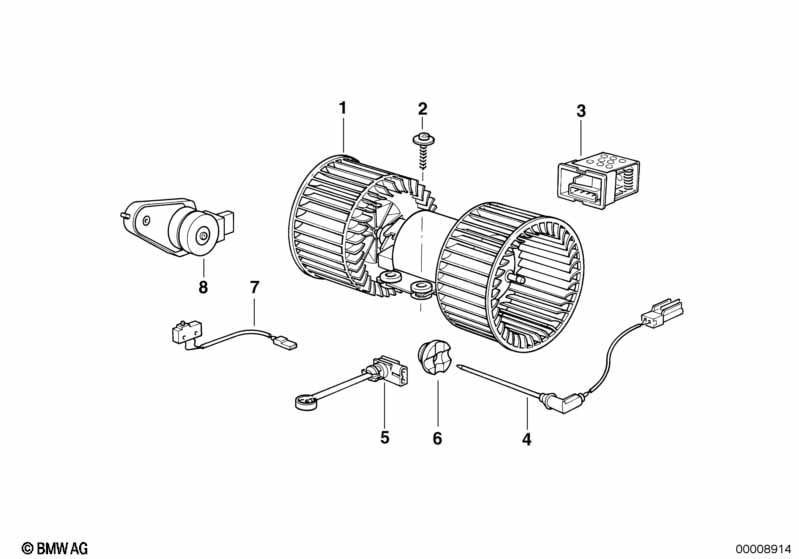

This Electric parts for AC unit technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Blower unit | 1 | 08/1995 | 09/1997 | 64118372183 | $320.03 | ENDED | Shop at ECS Tuning | ||
| 02 | Screw | 3 | 09/1997 | 64118391922 | $1.28 | Shop at ECS Tuning | ||||
| 03 | Blower resistor | 1 | 09/1997 | 64118391705 | $59.40 | Shop at ECS Tuning | ||||
| 04 | Evaporator temperature sensor | 1 | 09/1997 | 64118391387 | $33.45 | Shop at ECS Tuning | ||||
| 05 | Temperature sensor, heater | 2 | 09/1997 | 64118391392 | $33.45 | Shop at ECS Tuning | ||||
| 06 | Rubber grommet | 1 | 09/1997 | 64511377494 | $6.63 | Shop at ECS Tuning | ||||
| 07 | Limit switch | 1 | 09/1997 | 64118391843 | $32.64 | ENDED | Shop at ECS Tuning | |||
| 08 | Actuator | 2 | 09/1997 | 64118390358 | $102.92 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
