Heater radiator automatic air condition for BMW 7 Series E38 740i (1995)

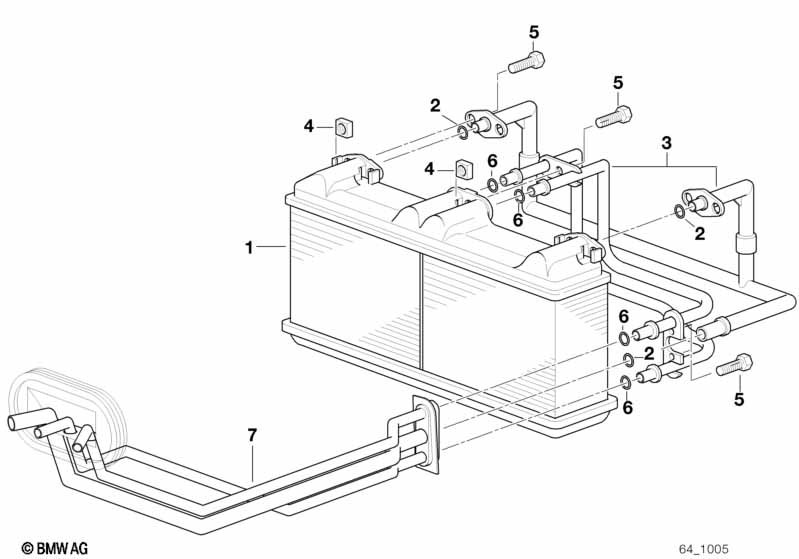

This Heater radiator automatic air condition technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heater radiator with aluminium water box | 1 | 09/1996 | 64118373175 | $202.15 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Double pipe | 1 | 09/1996 | 64118373177 | $125.23 | Shop at ECS Tuning | ||||
| 02 | Gasket ring | D=17.12MM | 1 | 64118377824 | $1.82 | Shop at ECS Tuning | ||||
| 03 | Double pipe | 1 | 09/1996 | 64118373177 | $125.23 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Heater radiator with aluminium water box | 1 | 09/1996 | 64118373175 | $202.15 | Shop at ECS Tuning | ||||
| 04 | Square nut | M5 | X | 07119921431 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M5X20-8.8 ZNS | X | 07119913116 | $1.20 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | D=13,98MM | 2 | 64111374238 | $1.82 | Shop at ECS Tuning | ||||
| 07 | Triple pipe | 1 | 64518391367 | $121.03 | Shop at ECS Tuning | |||||
