Air Conditioning Control for BMW 7 Series E38 740i (1996)

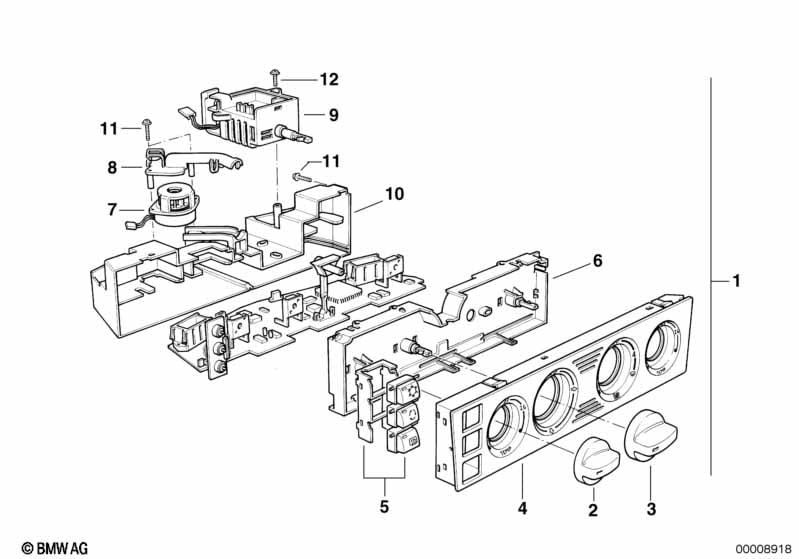

This Air Conditioning Control technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air Conditioning Control | 1 | 09/1997 | 64118390372 | $661.23 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Auxiliary heating or On-board computer |
S536A=Yes S550A=Yes |
|||||||||
| 01 | Air Conditioning Control | 1 | 09/1997 | 64118367917 | ENDED | Shop at ECS Tuning | ||||
| 02 | Knob temperature | 2 | 09/1997 | 64118391932 | $11.83 | Shop at ECS Tuning | ||||
| 03 | Air distribution knob | 2 | 09/1997 | 64118391931 | $11.94 | Shop at ECS Tuning | ||||
| 04 | Front plate of controls air conditioner | 1 | 09/1997 | 64118391103 | $92.63 | ENDED | Shop at ECS Tuning | |||
| 05 | Set caps | 1 | 09/1997 | 64118363594 | $21.65 | ENDED | Shop at ECS Tuning | |||
| 06 | Base plate | 1 | 09/1997 | 64118391934 | $21.32 | ENDED | Shop at ECS Tuning | |||
| 07 | Interior temperature sensor fan | 1 | 09/1997 | 67328361479 | $136.30 | Shop at ECS Tuning | ||||
| 08 | Connection pipe | 1 | 09/1997 | 64118391933 | $4.63 | ENDED | Shop at ECS Tuning | |||
| 09 | Switch blower | 1 | 09/1997 | 64118391106 | $56.64 | Shop at ECS Tuning | ||||
| 10 | Housing | 1 | 09/1997 | 64118391104 | $13.39 | ENDED | Shop at ECS Tuning | |||
| 11 | Torx bolt | 3,5X10 | 2 | 09/1997 | 51168108077 | $0.34 | ENDED | Shop at ECS Tuning | ||
| 12 | Bulb | 12V 1,2W | 2 | 09/1997 | 63217167000 | $3.00 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
