Drying container/small parts for BMW 7 Series E38 735i (1998)

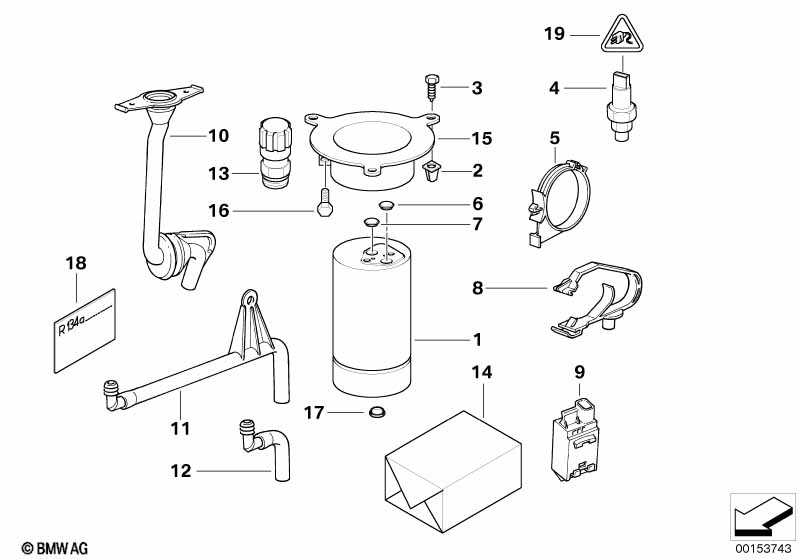

This Drying container/small parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Drying container | 1 | 11/1997 | 64538377330 | $217.53 | ENDED | Shop at ECS Tuning | |||
| 02 | Expanding nut | ST 4.8 | 1 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 03 | Hex head screw | ST4,8X19-U2 SW | 1 | 07119904288 | $2.05 | Shop at ECS Tuning | ||||
| 04 | Safety pressure switch | 1 | 09/1998 | 64538391639 | $111.38 | +core | Shop at ECS Tuning | |||
| 05 | Bracket suction pipe airconditioner | 1 | 64536904205 | $1.56 | Shop at ECS Tuning | |||||
| 06 | Sealing cap for suction line | R134A | 1 | 64538387437 | $0.81 | Shop at ECS Tuning | ||||
| 07 | Sealing cap for pressure line | R134A | 1 | 64538387438 | $0.82 | Shop at ECS Tuning | ||||
| 08 | Hose clamp | 1 | 64118391478 | $1.42 | Shop at ECS Tuning | |||||
| 09 | Sensor f. AUC | 1 | 64116917001 | $78.45 | Shop at ECS Tuning | |||||
| 10 | Condensation water outlet hose | 1 | 64118390374 | $7.64 | Shop at ECS Tuning | |||||
| 11 | Condensation water outlet hose | 2 | 64118391829 | $7.64 | Shop at ECS Tuning | |||||
| 12 | Condensation water outlet hose | 2 | 64118368171 | $7.64 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO COOLANT R134A ONLY APPLIES TO PRESSURE HOSE ASSY |
||||||||||
| 13 | Valve insert, pressure line | R134A | 1 | 08/2003 | 64538391215 | $9.32 | ENDED | Shop at ECS Tuning | ||
| 13 | Valve insert, pressure line | R134A | 1 | 64509177577 | $10.87 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO COOLANT R134A ONLY APPLIES TO SUCTION PIPE |
||||||||||
| 13 | Valve insert, suction line | R134A | 1 | 08/2003 | 64509177579 | $10.87 | Shop at ECS Tuning | |||
| 14 | Set small parts f air cond.adjust.lever | BEHR | 1 | 64118391576 | $66.80 | Shop at ECS Tuning | ||||
| 14 | Set small parts f air cond.adjust.lever | SIEMENS/VALEO | 1 | 64118391688 | $71.15 | ENDED | Shop at ECS Tuning | |||
| 15 | Bracket drying container | 1 | 11/1997 | 64538381131 | $14.42 | Shop at ECS Tuning | ||||
| 16 | Hex bolt with washer | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 17 | Rubber Mounting | 1 | 64531378239 | $1.82 | Shop at ECS Tuning | |||||
| 18 | Label, coolant | 680+/-10G | 1 | 71239158487 | Shop at ECS Tuning | |||||
| 19 | Universal socket housing uncoded | 3 POL. | 1 | 07/2001 | 61138365348 | $3.40 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 3 | 07/2001 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Single conductor seal | 0,5-1,5 MM² | 3 | 07/2001 | 61138353706 | $0.27 | Shop at ECS Tuning | |||
| 19 | Rep. kit for socket housing | 3 POL. | 1 | 61132359998 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 3 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Single conductor seal | 0,5-1,5 MM² | 3 | 61138353706 | $0.27 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
