Water valve/Water hose for BMW 7 Series E38 740i (2001)

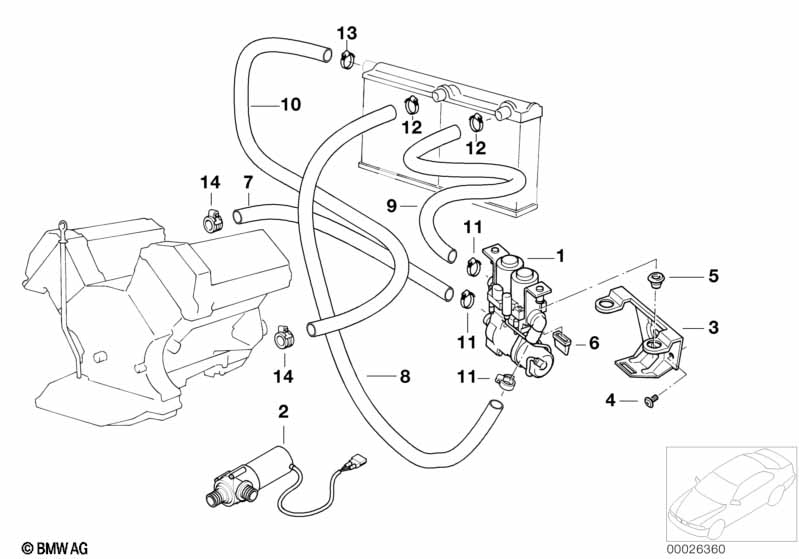

This Water valve/Water hose technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Water valve with additional water pump | 1 | 03/1996 | 64118374994 | $365.51 | Shop at ECS Tuning | ||||
| 02 | Additional water pump f water valve | 1 | 10/1995 | 64118375237 | $364.53 | Shop at ECS Tuning | ||||
| 03 | Water valve bracket | 1 | 64528150971 | $8.70 | Shop at ECS Tuning | |||||
| 04 | Torx-bolt with washer | ISA M6X16 | 3 | 51218100708 | $0.89 | Shop at ECS Tuning | ||||
| 05 | Grommet | 2 | 64126910076 | $1.50 | Shop at ECS Tuning | |||||
| 06 | Rubber Mounting | 1 | 17111712911 | $1.18 | Shop at ECS Tuning | |||||
| 07 | Hose f engine inlet and addit.water pump | 1 | 64218380270 | $17.00 | Shop at ECS Tuning | |||||
| 08 | Hose f water valve and right radiator | 1 | 64218371386 | $14.84 | Shop at ECS Tuning | |||||
| 08 | Hose f water valve and right radiator | 1 | 03/1996 | 64218377662 | $22.93 | Shop at ECS Tuning | ||||
| 09 | Hose f water valve and left radiator | 1 | 64218391122 | $9.77 | Shop at ECS Tuning | |||||
| 10 | Hose f radiator and engine return | 1 | 64218390319 | $13.30 | Shop at ECS Tuning | |||||
| 11 | Hose clamp | L16-30 | 3 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 12 | Hose clamp | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 13 | Hose clamp | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 14 | Hose clamp | L28-33 | 2 | 07129952113 | $0.96 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 740i Water valve/Water hose?
- This technical diagram illustrates the Water valve/Water hose within the Heater and Air Conditioning group for the 7 Series E38 740i produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Water valve with additional water pump (Part #64118374994).
- Which models use the hardware listed in this Water valve/Water hose?
- The hardware and components featured in the Water valve/Water hose are specific to the 7 Series E38 740i produced during 2001. These technical specifications ensure that parts like the Water valve with additional water pump (64118374994) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Water valve/Water hose assembly?
- Each item in the Water valve/Water hose corresponds to the numbered list below the illustration. For the 7 Series E38 740i, you can identify the Water valve with additional water pump by locating its position on the schematic, which then links to the official BMW part number 64118374994 for the Heater and Air Conditioning section.
