Microfilter/activated Carbon container for BMW 7 Series E38 730i (1996)

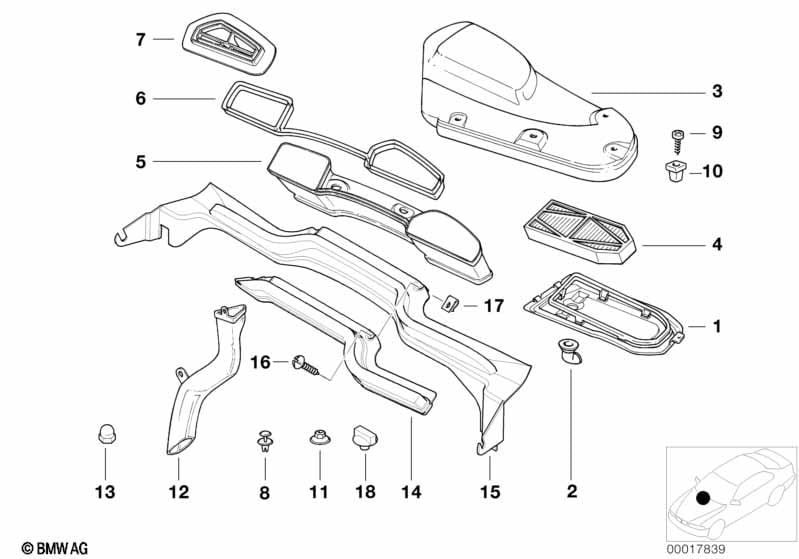

This Microfilter/activated Carbon container technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left microfilter service cover | 1 | 64318390995 | $69.80 | Shop at ECS Tuning | |||||
| 01 | Right microfilter service cover | 1 | 64318390996 | $69.80 | Shop at ECS Tuning | |||||
| 02 | Water outlet valve | 2 | 64318390375 | $3.00 | Shop at ECS Tuning | |||||
| 03 | Left microfilter air channel | 1 | 64318390537 | $223.19 | Shop at ECS Tuning | |||||
| 03 | Right microfilter air channel | 1 | 64318390538 | $223.19 | Shop at ECS Tuning | |||||
| 04 | Set, microfilter/activ. charcoal filter | 1 | 64312339888 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Vehicle interior filt..f.housing cleaner | 50 ML | 1 | 83192451455 | Shop at ECS Tuning | |||||
| 05 | Microfilter clean air channel | 1 | 64118390380 | $99.84 | Shop at ECS Tuning | |||||
| 06 | Rubber seal | 1 | 64318363487 | $61.50 | Shop at ECS Tuning | |||||
| 07 | Covering left | 1 | 64118391241 | $101.98 | ENDED | Shop at ECS Tuning | ||||
| 07 | Covering right | 1 | 64118391242 | $101.98 | Shop at ECS Tuning | |||||
| 08 | Screw | 4X14 | 4 | 07149115641 | $0.27 | Shop at ECS Tuning | ||||
| 08 | Expanding rivet | 6 | 51481938725 | $0.37 | Shop at ECS Tuning | |||||
| 09 | Fillister head self-tapping screw | ST4,8X16 | 2 | 07147137416 | $0.20 | Shop at ECS Tuning | ||||
| 10 | Prestol-cage | ST4,8 | 2 | 07129925765 | $0.18 | ENDED | Shop at ECS Tuning | |||
| 11 | Push-button | D=30MM;H=13MM | 2 | 51481923999 | $0.42 | Shop at ECS Tuning | ||||
| 12 | Outlet hose | 2 | 64318363486 | $16.52 | Shop at ECS Tuning | |||||
| 13 | Cap nut | 2 | 64111388004 | $8.28 | Shop at ECS Tuning | |||||
