Fuel supply/pump/tubing for BMW 5 Series E39 525d (2003)

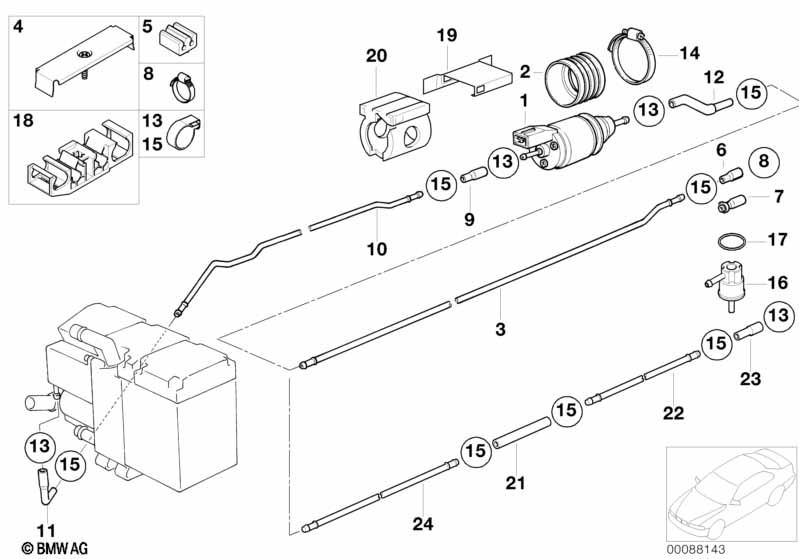

This Fuel supply/pump/tubing technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel pump | 1 | 64129143157 | Shop at ECS Tuning | ||||||
| 03 | Auxiliary heating fuel pipe | 1 | 64128363807 | $10.71 | Shop at ECS Tuning | |||||
| 04 | Tubing support | 3 | 16121182604 | $1.67 | Shop at ECS Tuning | |||||
| 05 | Absorber | 3 | 37138363915 | $2.28 | Shop at ECS Tuning | |||||
| 09 | Fuel hose | 1 | 64126924317 | Shop at ECS Tuning | ||||||
| For vehicles with Rape methyl ester version (RME) |
S201A=Yes |
|||||||||
| 09 | Fuel hose | 1 | 64126924318 | Shop at ECS Tuning | ||||||
| 10 | Auxiliary heating fuel pipe | 1 | 04/2001 | 64126917424 | Shop at ECS Tuning | |||||
| 11 | Fuel hose | 126MM | 1 | 03/1999 | 64128379561 | $11.94 | Shop at ECS Tuning | |||
| For vehicles with Rape methyl ester version (RME) |
S201A=Yes |
|||||||||
| 11 | Fuel hose | 1 | 64126915488 | $4.52 | Shop at ECS Tuning | |||||
| 12 | Fuel hose | 1 | 64126915490 | $15.96 | Shop at ECS Tuning | |||||
| 13 | Hose clamp | 66/100 | 4 | 64121378285 | $1.03 | Shop at ECS Tuning | ||||
| 14 | Hose clamp | 20-47 MM | 1 | 64121392409 | $4.22 | Shop at ECS Tuning | ||||
| 15 | Hose clamp | 6 | 16131388117 | $0.56 | Shop at ECS Tuning | |||||
| 16 | Fuel offtake | 1 | 01/1997 | 64128386693 | $37.78 | Shop at ECS Tuning | ||||
| 18 | Tubing support | 3 | 16121182602 | Shop at ECS Tuning | ||||||
| 19 | Braket fuel pump | 1 | 11/1999 | 41117015154 | $1.77 | Shop at ECS Tuning | ||||
| 20 | Rubber buffer | 1 | 11/1999 | 64126907120 | $16.96 | Shop at ECS Tuning | ||||
| 21 | Fuel hose | 126MM | 1 | 64128379561 | $11.94 | Shop at ECS Tuning | ||||
| For vehicles with Rape methyl ester version (RME) |
S201A=Yes |
|||||||||
| 21 | Fuel hose | 1 | 64126915488 | $4.52 | Shop at ECS Tuning | |||||
| 22 | Auxiliary heating fuel pipe | 1 | 64128363809 | Shop at ECS Tuning | ||||||
| 23 | Fuel hose | 1 | 64126924317 | Shop at ECS Tuning | ||||||
| For vehicles with Rape methyl ester version (RME) |
S201A=Yes |
|||||||||
| 23 | Fuel hose | 1 | 64126924318 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525d Fuel supply/pump/tubing?
- This technical diagram illustrates the Fuel supply/pump/tubing within the Heater and Air Conditioning group for the 5 Series E39 525d produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Fuel pump (Part #64129143157).
- Which models use the hardware listed in this Fuel supply/pump/tubing?
- The hardware and components featured in the Fuel supply/pump/tubing are specific to the 5 Series E39 525d produced during 2003. These technical specifications ensure that parts like the Fuel pump (64129143157) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel supply/pump/tubing assembly?
- Each item in the Fuel supply/pump/tubing corresponds to the numbered list below the illustration. For the 5 Series E39 525d, you can identify the Fuel pump by locating its position on the schematic, which then links to the official BMW part number 64129143157 for the Heater and Air Conditioning section.
