Independent heating water valves for BMW 7 Series E38 730d (2001)

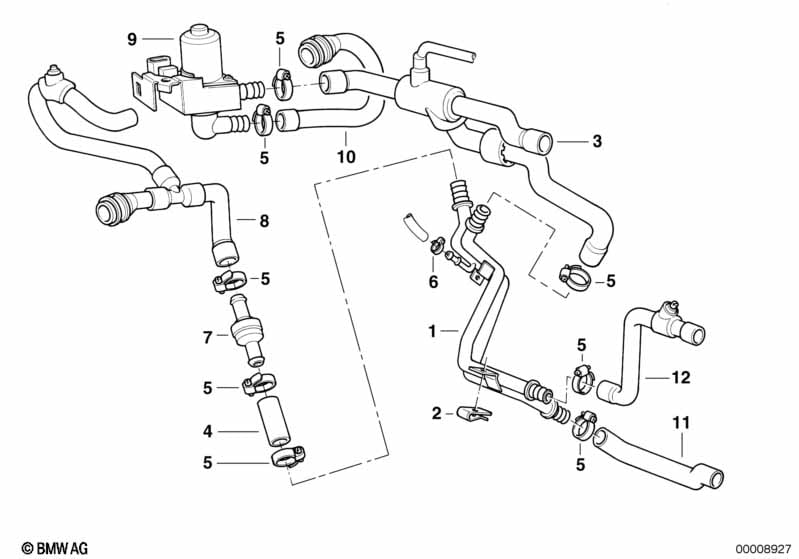

This Independent heating water valves technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Double pipe | 1 | 64128385903 | Shop at ECS Tuning | ||||||
| 02 | Body nut | D=18MM, ZNS-3 | 2 | 07146949379 | $0.20 | Shop at ECS Tuning | ||||
| 03 | Hose f engine inlet and double pipe/pump | 1 | 64218386348 | Shop at ECS Tuning | ||||||
| 04 | Hose f double pipe and check valve | 1 | 64218386350 | Shop at ECS Tuning | ||||||
| 05 | Hose clamp | L16-30 | 8 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 07 | Double check valve | 1 | 64128379872 | $70.87 | Shop at ECS Tuning | |||||
| 08 | Hose f check valve and engine return | 1 | 64218386349 | Shop at ECS Tuning | ||||||
| 10 | Hose f additional heater and double pipe | 1 | 64218380249 | Shop at ECS Tuning | ||||||
| 10 | Hose f radiator and check valve | 1 | 64218386351 | Shop at ECS Tuning | ||||||
| 11 | Hose | 1 | 03/1999 | 64218375876 | Shop at ECS Tuning | |||||
| 12 | Hose | 1 | 03/1999 | 64218375872 | Shop at ECS Tuning |
