Climate compressor supporting bracket for BMW 7 Series E38 730i (1996)

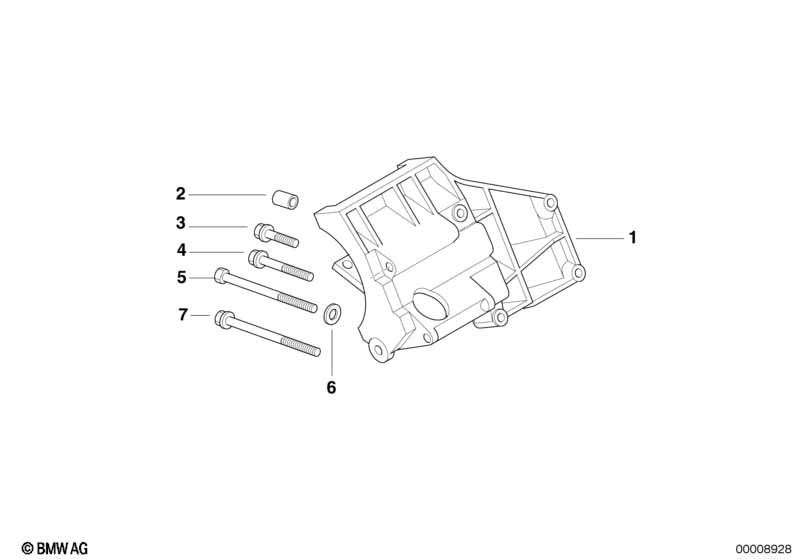

This Climate compressor supporting bracket technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Climate compressor supporting bracket | 1 | 64521747258 | $70.60 | +core | Shop at ECS Tuning | ||||
| 02 | Dowel | D=11,1MM | 2 | 11121726245 | $1.62 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M8X30-Z3 | 5 | 07119915085 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X50-U1-8.8 | 4 | 07119904504 | $1.15 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M8X110-8.8 | 2 | 07119906728 | Shop at ECS Tuning | |||||
| 06 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 07 | Hex bolt with washer | M8X90-U1 | 4 | 07119905392 | $1.53 | Shop at ECS Tuning |
