Auxiliary heating for BMW 5 Series E34 540i (1995)

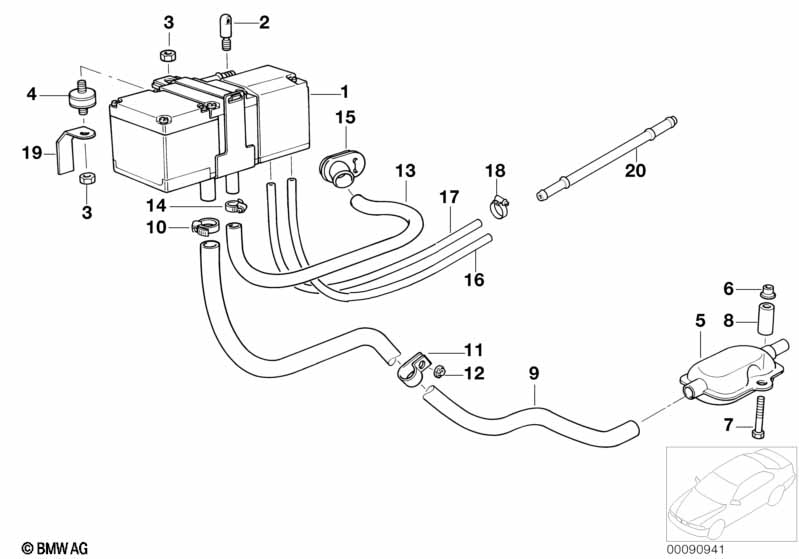

This Auxiliary heating technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exch. Independent heater | 1 | 64128370525 | ENDED | Shop at ECS Tuning | |||||
| 01 | Heater | 1 | 64128390808 | ENDED | Shop at ECS Tuning | |||||
| 02 | Pin | 2 | 64128390704 | $6.05 | Shop at ECS Tuning | |||||
| 03 | Hex nut with plate | AM6-ZNS | 1 | 07129900681 | $0.35 | ENDED | Shop at ECS Tuning | |||
| 04 | Vibration damper | 1 | 64128390898 | ENDED | Shop at ECS Tuning | |||||
| 05 | Exhaust pipe-muffler | 1 | 64121378083 | Shop at ECS Tuning | ||||||
| 06 | Blind rivet nut, countersunk head | M6 | 1 | 52201975880 | $0.77 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X35-U1-8.8 | 1 | 07119904589 | $0.47 | Shop at ECS Tuning | ||||
| 08 | Spacer sleeve | 1 | 64128390887 | ENDED | Shop at ECS Tuning | |||||
| 09 | Exhaust pipe | 1 | 64128390888 | Shop at ECS Tuning | ||||||
| 11 | Hose clamp | 1 | 64121389483 | Shop at ECS Tuning | ||||||
| 12 | Body nut | D=18MM, ZNS-3 | 1 | 07146949379 | $0.20 | Shop at ECS Tuning | ||||
| 13 | Hose | 1 | 64218390889 | Shop at ECS Tuning | ||||||
| 15 | Grommet | 1 | 64128390715 | Shop at ECS Tuning | ||||||
| 16 | Fuel hose | 8X13MM | 1 | 03/2001 | 13537788347 | $53.03 | ENDED | Shop at ECS Tuning | ||
| 17 | Fuel hose | 1 | 64128390917 | ENDED | Shop at ECS Tuning | |||||
| 18 | Hose clamp | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 19 | Bracket for Independent heater | 1 | 41148147940 | $3.07 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
