Heating/air conditioner actuation for BMW 8 Series E31 850Ci (1994)

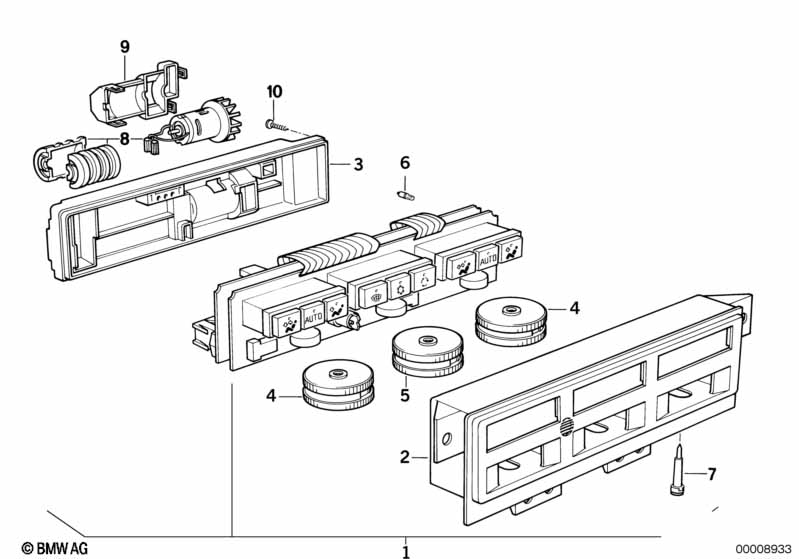

This Heating/air conditioner actuation technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Automatic air conditioning control | 1 | 64111392081 | $1045.51 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO AUC | ||||||||||
| 01 | Control unit, automatic air cond.,AUC | 1 | 64111392171 | $1540.96 | ENDED | Shop at ECS Tuning | ||||
| 02 | Panel | 1 | 64111392083 | $93.15 | ENDED | Shop at ECS Tuning | ||||
| 03 | Cover | 1 | 64111392086 | $11.05 | ENDED | Shop at ECS Tuning | ||||
| Degrees F no longer available | ||||||||||
| 04 | Rotary switch temperature | 2 | 64111392084 | $22.18 | Shop at ECS Tuning | |||||
| 05 | Rotary switch air volume | 1 | 64111392085 | $22.18 | Shop at ECS Tuning | |||||
| 06 | Bulb | 12V 1,2W | 1 | 62111391777 | $9.52 | Shop at ECS Tuning | ||||
| 07 | Quick-release axle | 3 | 64111392175 | $4.63 | Shop at ECS Tuning | |||||
| 08 | Interior temperature sensor fan | 1 | 64118390150 | $117.73 | Shop at ECS Tuning | |||||
| 09 | Cover | 1 | 64111374245 | $3.61 | Shop at ECS Tuning | |||||
| 10 | Screw | 4 | 64111378860 | $0.28 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
