Condenser/fan/drying container for BMW 8 Series E31 850Ci (1994)

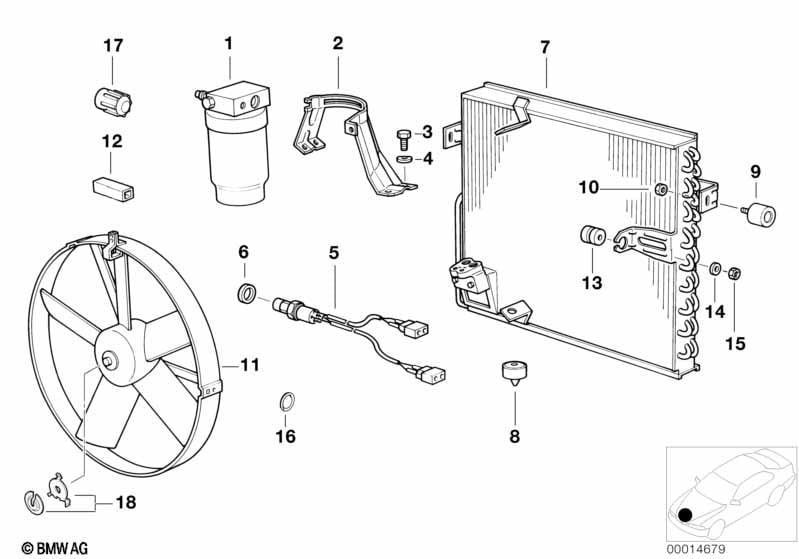

This Condenser/fan/drying container technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Drying container | R12/R134A | 1 | 64538390483 | $217.53 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M6X12-8.8-ZNNIV | 4 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 04 | Spring washer Black | B6-ZN | 4 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Washer | 5.3-140 HV-ZNS | 4 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 04 | Wave washer | B6-ZNS3 | 4 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 05 | Safety pressure switch | R12/R134A | 1 | 64538390815 | $111.38 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | D=11.1MM | 1 | 05/1995 | 64508390602 | $1.49 | Shop at ECS Tuning | |||
| 06 | Gasket ring | D=11.1MM | 1 | 64508390602 | $1.49 | Shop at ECS Tuning | ||||
| 07 | Condenser air conditioning | 1 | 64531392941 | $525.83 | Shop at ECS Tuning | |||||
| 08 | Rubber Mounting | 2 | 64531378239 | $1.82 | Shop at ECS Tuning | |||||
| 09 | Spacer bush | 2 | 64531392028 | $0.65 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Grommet | 2 | 64531392027 | $1.12 | ENDED | Shop at ECS Tuning | ||||
| -- | Washer | 2 | 11141287240 | $0.42 | Shop at ECS Tuning | |||||
| -- | Body nut | ST6,3-1-ZNS3 | 2 | 07129904231 | Shop at ECS Tuning | |||||
| -- | Hex head screw | ST6,3X22-F-ZN | 2 | 07119916851 | Shop at ECS Tuning | |||||
| 10 | Hex nut with plate | AM6-8-ZNNIV SI | 2 | 07129905542 | $0.47 | Shop at ECS Tuning | ||||
| 11 | Additional fan | 1 | 64541392913 | $348.67 | Shop at ECS Tuning | |||||
| 12 | Repair kit resistor | MAGNA | 1 | 64121388069 | $58.98 | Shop at ECS Tuning | ||||
| 13 | Rubber grommet | 3 | 17401362128 | $3.37 | Shop at ECS Tuning | |||||
| 14 | Washer | 3 | 17401354523 | $0.63 | Shop at ECS Tuning | |||||
| 15 | Hex nut | M5 | 3 | 07119905710 | $2.83 | Shop at ECS Tuning | ||||
| 16 | Gasket ring | D=11.1MM | X | 05/1995 | 64508390602 | $1.49 | Shop at ECS Tuning | |||
| 16 | Gasket ring | D=7,65MM | X | 64508390601 | $1.93 | Shop at ECS Tuning | ||||
| 16 | Gasket ring | D=11.1MM | X | 64508390602 | $1.49 | Shop at ECS Tuning | ||||
| 16 | Gasket ring | D=14MM | X | 64508390603 | $1.49 | Shop at ECS Tuning | ||||
| 16 | Gasket ring | D=17,17MM | X | 64508390604 | $2.02 | Shop at ECS Tuning | ||||
| 16 | Gasket ring | D=6.8 R12/R134A | X | 64508390605 | $2.51 | Shop at ECS Tuning | ||||
| 17 | Sealing cap for suction line | R134A | 1 | 64538387437 | $0.81 | Shop at ECS Tuning | ||||
| 17 | Sealing cap for pressure line | R134A | 1 | 64538387438 | $0.82 | Shop at ECS Tuning | ||||
| 18 | Clip | 1 | 64509071431 | $3.47 | Shop at ECS Tuning | |||||
