Water valve/Water hose for BMW 8 Series E31 850Ci (1994)

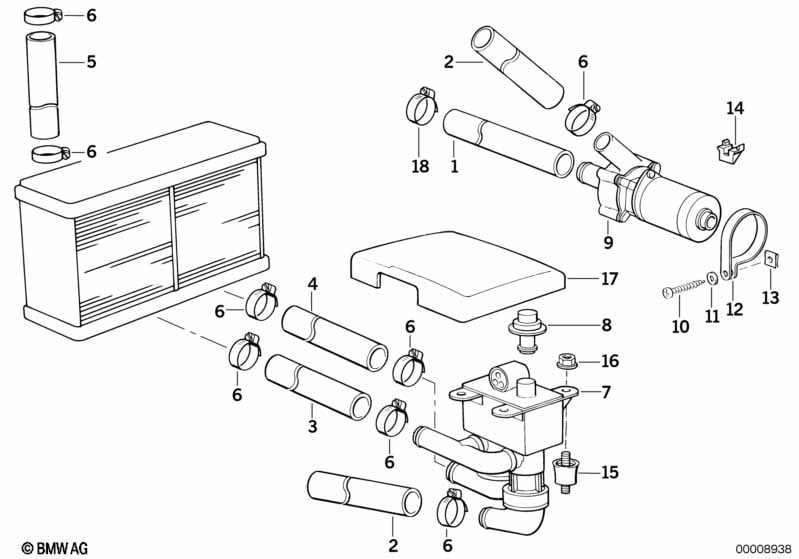

This Water valve/Water hose technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | TOO LONG HOSES MUST BE CUT ACCORDING TO THE ORIGINAL PART |
|||||||||
| 01 | Water hose inlet 1 | 1 | 64211383350 | $16.88 | Shop at ECS Tuning | |||||
| 02 | Water hose inlet 2 | 1 | 64211383407 | $27.43 | Shop at ECS Tuning | |||||
| 03 | Water hose inlet 3.1 | 1 | 64211383351 | $21.05 | Shop at ECS Tuning | |||||
| 04 | Water hose inlet 3.2 | 1 | 64211383352 | $21.05 | Shop at ECS Tuning | |||||
| 05 | Hose, inlet | 1 | 64211370807 | $14.43 | Shop at ECS Tuning | |||||
| 06 | Hose clamp | L23-29 | 8 | 12/1995 | 07129952111 | $0.93 | ENDED | Shop at ECS Tuning | ||
| 06 | Hose clamp | L16-30 | 8 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 07 | Water valve | 1 | 64118391417 | $274.00 | Shop at ECS Tuning | |||||
| 09 | Additional water pump | 1 | 64118390090 | $163.38 | ENDED | Shop at ECS Tuning | ||||
| 09 | Additional water pump | 1 | 64118390063 | $131.88 | Shop at ECS Tuning | |||||
| 10 | Fillister head self-tapping screw | ST4,2X32 | 1 | 07119906757 | $0.13 | Shop at ECS Tuning | ||||
| 11 | Washer | 4-200 HV-ZNS3 | 1 | 07119904207 | Shop at ECS Tuning | |||||
| 12 | Muffler clamp | 1 | 64111390166 | $1.28 | ENDED | Shop at ECS Tuning | ||||
| 13 | Nut | ST4,2-1 | 1 | 07129926107 | $0.36 | Shop at ECS Tuning | ||||
| 14 | Wedge | 1 | 64111378375 | $0.62 | Shop at ECS Tuning | |||||
| 15 | Vibration damper | 2 | 64111390940 | $5.60 | Shop at ECS Tuning | |||||
| 16 | Cap nut | 2 | 64111388004 | $8.28 | Shop at ECS Tuning | |||||
| 17 | Cover | 1 | 64111383499 | $36.27 | ENDED | Shop at ECS Tuning | ||||
| 18 | Hose clamp | L28-33 | 1 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
