Housing parts automatic air conditioning for BMW 7 Series E32 730i (1993)

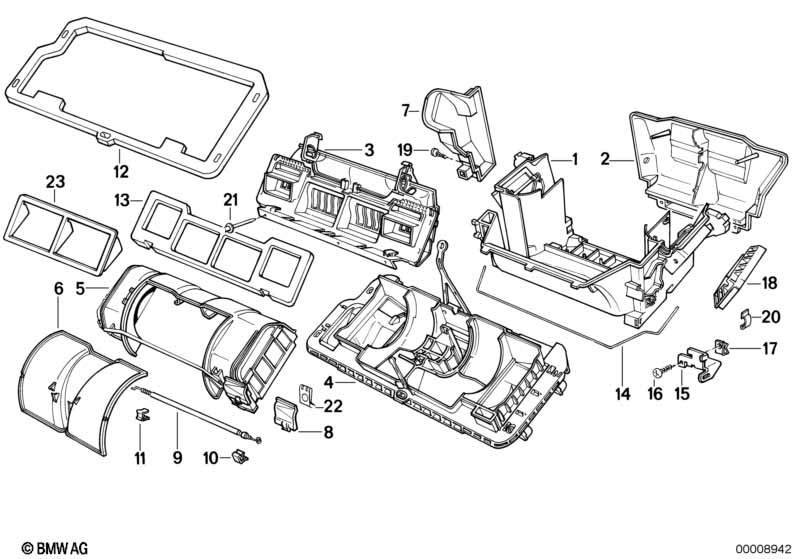

This Housing parts automatic air conditioning technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Microfiltre |
=Yes |
|||||||||
| 01 | Housing bottom | 1 | 64111390832 | $209.43 | Shop at ECS Tuning | |||||
| 02 | Housing rear | 1 | 64111374322 | $76.60 | ENDED | Shop at ECS Tuning | ||||
| 03 | Housing center | 1 | 64111374325 | $495.95 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Microfiltre |
=Yes |
|||||||||
| 04 | Housing lower part | 1 | 64111390833 | $195.27 | ENDED | Shop at ECS Tuning | ||||
| 05 | Housing upper part | 1 | 64118350029 | $194.68 | ENDED | Shop at ECS Tuning | ||||
| 06 | Cover | 1 | 64118350030 | $12.84 | ENDED | Shop at ECS Tuning | ||||
| 07 | Evaporator cover | 1 | 64111390834 | $25.25 | Shop at ECS Tuning | |||||
| 08 | Cap | 1 | 64111374348 | $1.25 | ENDED | Shop at ECS Tuning | ||||
| 09 | Bowden cable | 1 | 64111374363 | $15.37 | Shop at ECS Tuning | |||||
| 10 | Clamp | 1 | 64111358563 | $1.83 | Shop at ECS Tuning | |||||
| 11 | Clamp | 1 | 64111368019 | $1.12 | Shop at ECS Tuning | |||||
| 12 | Sealing frame | 1 | 64111374357 | $51.18 | Shop at ECS Tuning | |||||
| 13 | Gasket | 1 | 64111374358 | $19.93 | Shop at ECS Tuning | |||||
| 14 | Rubber seal | 1500MM | 1 | 64111374109 | $7.15 | Shop at ECS Tuning | ||||
| 15 | Bracket left | 1 | 64111378759 | $5.77 | Shop at ECS Tuning | |||||
| 15 | Bracket right | 1 | 64111378760 | $5.82 | Shop at ECS Tuning | |||||
| 18 | Gasket | 1 | 64111379878 | $7.59 | Shop at ECS Tuning | |||||
| 19 | Fillister head screw | X | 07147195855 | Shop at ECS Tuning | ||||||
| 20 | Clamp | X | 64111370938 | $0.38 | Shop at ECS Tuning | |||||
| 21 | Rivet | 4-4A | 4 | 07129948750 | $0.21 | Shop at ECS Tuning | ||||
| 21 | Screw | 40X14 | 4 | 64118391265 | $0.22 | Shop at ECS Tuning | ||||
| 22 | Clamp | 4 | 64111390850 | $1.97 | Shop at ECS Tuning | |||||
